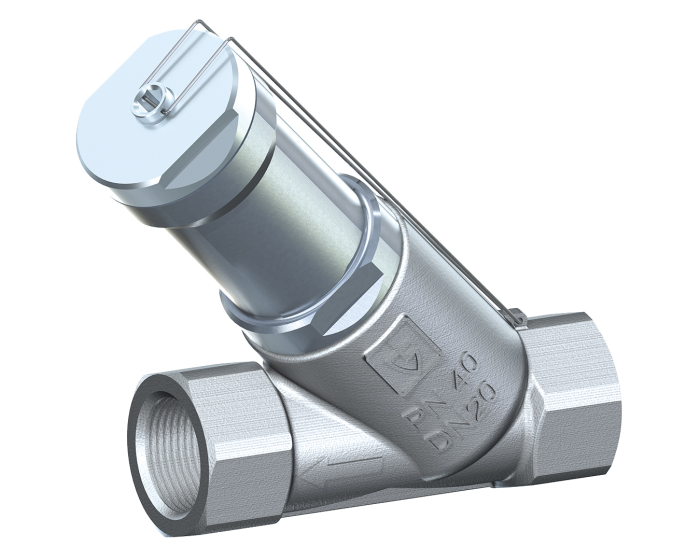

The 417 YP in-line overflow valve is a stainless steel valve for pressure relief, e.g. downstream of a pump. Y-body with PTFE bearing. PS: 20 bar. Proportional opening. G threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN10 - 3/8'' |
| Body material | Stainless steel CF8M (1.4408) |
| Upstream pressure range (bar) | 0.5 / 2.5 |
| Bearing | PTFE |
| PS (bar) | 20 |
| Connections | BSP FF |
| TS max (°C) | 225 |
| TS min (°C) | -60 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 0.5 / 2.5 | 289751 | S1011973 |
€425.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 0.5 / 2.5 | 289752 | S1011974 |
€486.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 0.5 / 2.5 | 289753 | S1011975 |
€589.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 0.5 / 2.5 | 289754 | S1011976 |
€682.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 2 / 12 | 289761 | S1011977 |
€425.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 2 / 12 | 289762 | S1011978 |
€486.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 2 / 12 | 289763 | S1011979 |
€589.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 2 / 12 | 289764 | S1011980 |
€682.81
(excl. btw)
|
add to cart |
