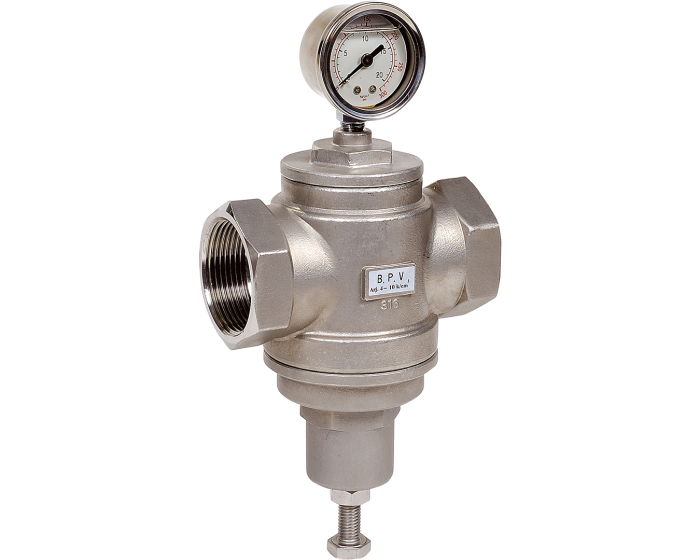

The threaded stainless steel ELITE Type BPV is designed for the function of clipping and maintaining the upstream pressure in pipelines for fluids such as water, air, liquids and compatible gases.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 285.0 |
| Sealing | FKM |
| Kv (m³/h) | 1.40 |
| Body material | Stainless steel CF8M (1.4408) |
| Upstream pressure range (bar) | 1 / 5 |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 100 |
| TS min (°C) | -15 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 1 / 5 | 248001 | S1012010 |
€414.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 4 / 10 | 248002 | S1012011 |
€414.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 1 / 5 | 248011 | S1012012 |
€414.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 4 / 10 | 248012 | S1012013 |
€414.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 1 / 5 | 248021 | S1012014 |
€466.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 4 / 10 | 248022 | S1012015 |
€466.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 1 / 5 | 248031 | S1012016 |
€750.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 4 / 10 | 248032 | S1012017 |
€750.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 1 / 5 | 248041 | S1012018 |
€761.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 4 / 10 | 248042 | S1012019 |
€761.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 1 / 5 | 249001 | S1012020 |
€491.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 4 / 10 | 249002 | S1012021 |
€491.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 1 / 5 | 249011 | S1012022 |
€625.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 4 / 10 | 249012 | S1012023 |
€625.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 1 / 5 | 249021 | S1012024 |
€760.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 4 / 10 | 249022 | S1012025 |
€760.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged PN16 1 / 5 | 249031 | S1012026 |
€1,045.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged PN16 4 / 10 | 249032 | S1012027 |
€1,045.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Flanged PN16 1 / 5 | 249041 | S1012028 |
€1,170.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Flanged PN16 4 / 10 | 249042 | S1012029 |
€1,170.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN65 - 2''1/2 Flanged PN16 1 / 5 | 249051 | S1012030 |
€2,292.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN65 - 2''1/2 Flanged PN16 4 / 10 | 249052 | S1012031 |
€2,292.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN80 - 3'' Flanged PN16 1 / 5 | 249061 | S1012032 |
€2,386.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN80 - 3'' Flanged PN16 4 / 10 | 249062 | S1012033 |
€2,386.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN100 - 4'' Flanged PN16 1 / 5 | 249071 | S1012034 |
€2,750.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN100 - 4'' Flanged PN16 4 / 10 | 249072 | S1012035 |
€2,750.51
(excl. btw)
|
add to cart |
