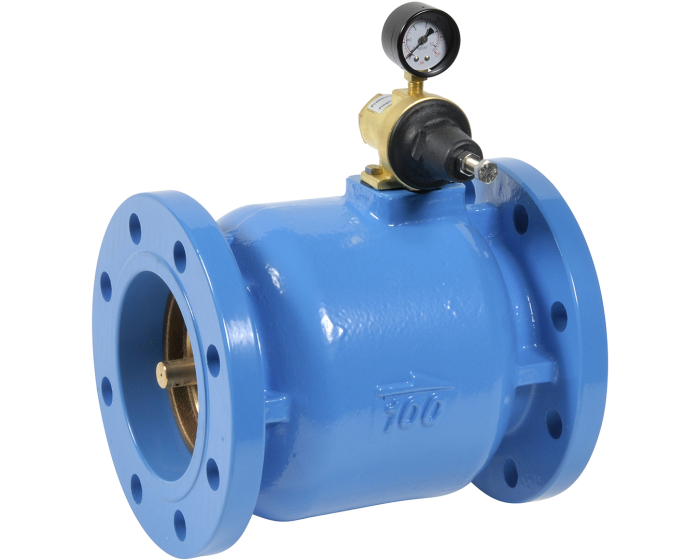

The BFS type flanged cast iron pressure relief valve is intended for use in water supply systems to maintain upstream pressure.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN50 - 2'' |
| Face to Face (mm) | 190 |
| Sealing | NBR |
| Kv (m³/h) | 64.00 |
| Body material | Cast iron |
| Upstream pressure range (bar) | 0.3 / 4 |
| PS (bar) | 16 |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Cast iron DN50 - 2'' 0.3 / 4 | 2470050 | S1012046 |
€826.10
(excl. btw)
|
add to cart |
| Cast iron DN65 - 2''1/2 0.3 / 4 | 2470065 | S1012047 |
€906.66
(excl. btw)
|
add to cart |
| Cast iron DN80 - 3'' 0.3 / 4 | 2470080 | S1012048 |
€1,107.96
(excl. btw)
|
add to cart |
| Cast iron DN100 - 4'' 0.3 / 4 | 2470100 | S1012049 |
€1,445.01
(excl. btw)
|
add to cart |
| Cast iron DN125 - 5'' 0.3 / 4 | 2470125 | S1012050 |
€2,120.57
(excl. btw)
|
add to cart |
| Cast iron DN150 - 6'' 0.3 / 4 | 2470150 | S1012051 |
€2,836.06
(excl. btw)
|
add to cart |
| Cast iron DN200 - 8'' 0.3 / 4 | 2470200 | S1012052 |
€6,397.16
(excl. btw)
|
add to cart |
| Cast iron DN50 - 2'' 2 / 8 | 2471050 | S1012053 |
€826.10
(excl. btw)
|
add to cart |
| Cast iron DN65 - 2''1/2 2 / 8 | 2471065 | S1012054 |
€906.66
(excl. btw)
|
add to cart |
| Cast iron DN80 - 3'' 2 / 8 | 2471080 | S1012055 |
€1,107.96
(excl. btw)
|
add to cart |
| Cast iron DN100 - 4'' 2 / 8 | 2471100 | S1012056 |
€1,445.01
(excl. btw)
|
add to cart |
| Cast iron DN125 - 5'' 2 / 8 | 2471125 | S1012057 |
€2,120.57
(excl. btw)
|
add to cart |
| Cast iron DN150 - 6'' 2 / 8 | 2471150 | S1012058 |
€2,836.06
(excl. btw)
|
add to cart |
| Cast iron DN200 - 8'' 2 / 8 | 2471200 | S1012059 |
€6,397.16
(excl. btw)
|
add to cart |
