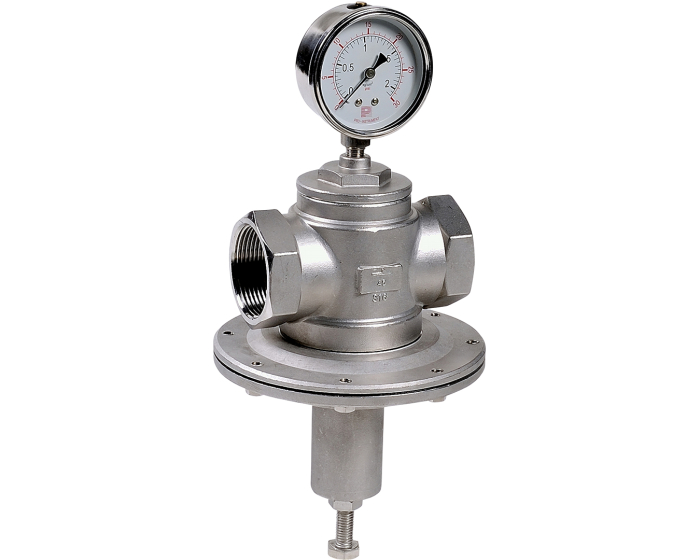

The ELITE Type LBPV low pressure threaded stainless steel pressure relief valve is designed for use as a pressure relief and pressure maintenance valve in piping systems for fluids such as water, air, liquids and compatible gases.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 285.0 |
| Sealing | FKM |
| Kv (m³/h) | 2.05 |
| Body material | Stainless steel CF8M (1.4408) |
| Upstream pressure range (bar) | 0.2 / 1.5 |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | -15 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 0.2 / 1.5 | 248100 | S1012040 |
€513.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 0.2 / 1.5 | 248110 | S1012041 |
€513.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 0.2 / 1.5 | 248120 | S1012042 |
€513.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 0.2 / 1.5 | 248130 | S1012043 |
€805.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 0.2 / 1.5 | 248140 | S1012044 |
€871.01
(excl. btw)
|
add to cart |
