Name: Stainless steel angle overflow valve 417 F FKM seat
SKU: 12176
Price: 426.2 EUR
Availability: InStock

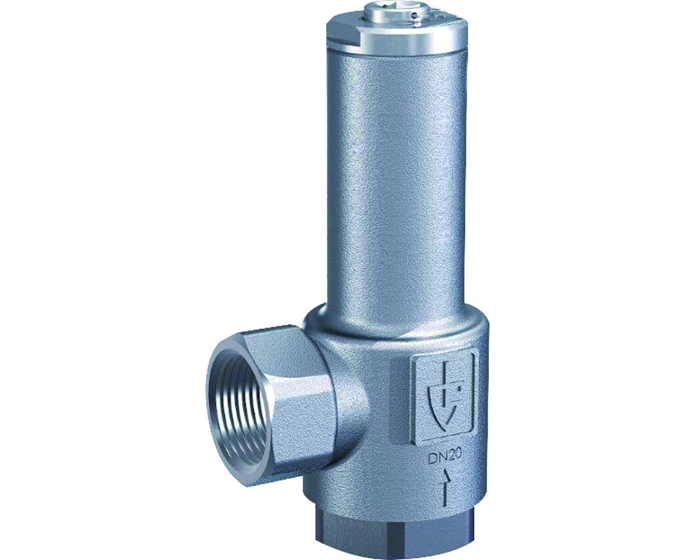

Stainless steel angle overflow valve 417 F FKM seat

€426.20 (excl. btw)

The overflow valve type 417 F is a stainless steel valve for pressure relief, e.g. downstream of a pump.

In stock Subject prior to sales
Categories : Overdrukventiel Pneumatiek

Documenten:

Certificate of conformity	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
ATEX compatible	No
DN	DN10 - 3/8''
Body material	Stainless steel CF8M (1.4408)
Upstream pressure range (bar)	0.5 / 2.5
Bearing	FKM
PS (bar)	20
Connections	BSP FF
TS max (°C)	200
TS min (°C)	-20
Warranty period	1 year
CE	Excluded (Article 4. §3)

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
12177	BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 0.5 / 2.5	289301	S1011873	€426.20 (excl. btw)	add to cart
12178	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 0.5 / 2.5	289302	S1011874	€491.79 (excl. btw)	add to cart
12179	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 0.5 / 2.5	289303	S1011875	€565.39 (excl. btw)	add to cart
12180	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 0.5 / 2.5	289304	S1011876	€683.17 (excl. btw)	add to cart
12181	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 0.5 / 2.5	289305	S1011877	€714.03 (excl. btw)	add to cart
12182	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 0.5 / 2.5	289306	S1011878	€751.81 (excl. btw)	add to cart
12183	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 0.5 / 2.5	289307	S1011879	€912.37 (excl. btw)	add to cart
12184	BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 2 / 12	289311	S1011880	€426.20 (excl. btw)	add to cart
12185	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 2 / 12	289312	S1011881	€491.79 (excl. btw)	add to cart
12186	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 2 / 12	289313	S1011882	€565.39 (excl. btw)	add to cart
12187	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 2 / 12	289314	S1011883	€683.17 (excl. btw)	add to cart
12188	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 2 / 12	289315	S1011884	€714.03 (excl. btw)	add to cart
12189	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 2 / 12	289316	S1011885	€751.81 (excl. btw)	add to cart
12190	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 2 / 12	289317	S1011886	€912.37 (excl. btw)	add to cart
