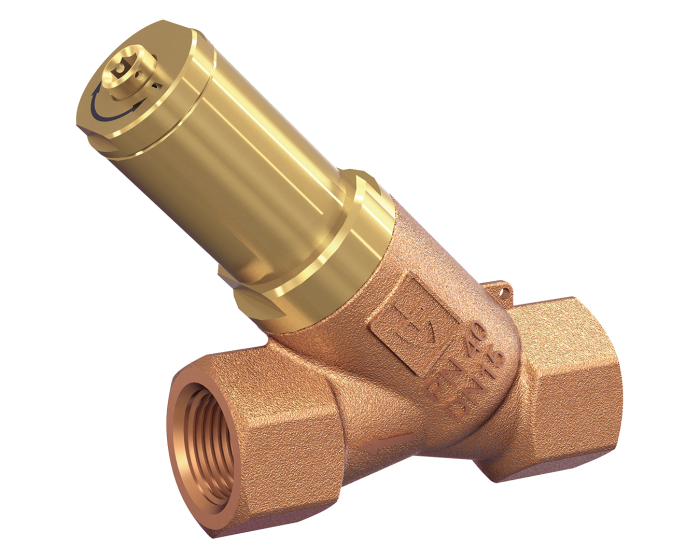

The 617 YP inline overflow valve is a bronze valve for pressure relief, e.g. downstream of a pump. Y-body in PTFE bearing. PS: 20 bar. Proportional opening. G threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN10 - 3/8'' |
| Body material | Bronze CC 499K |
| Upstream pressure range (bar) | 0.5 / 2.5 |
| Bearing | PTFE |
| PS (bar) | 20 |
| Connections | BSP FF |
| TS max (°C) | 225 |
| TS min (°C) | -60 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze CC 499K DN10 - 3/8'' 0.5 / 2.5 | 289451 | S1011952 |
€125.03
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 0.5 / 2.5 | 289452 | S1011953 |
€125.03
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 0.5 / 2.5 | 289453 | S1011954 |
€126.97
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 0.5 / 2.5 | 289454 | S1011955 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN32 - 1''1/4 0.5 / 2.5 | 289455 | S1011956 |
€272.31
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 2 / 12 | 289461 | S1011957 |
€125.03
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 2 / 12 | 289462 | S1011958 |
€125.03
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 2 / 12 | 289463 | S1011959 |
€126.97
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 2 / 12 | 289464 | S1011960 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN32 - 1''1/4 2 / 12 | 289465 | S1011961 |
€272.31
(excl. btw)
|
add to cart |
