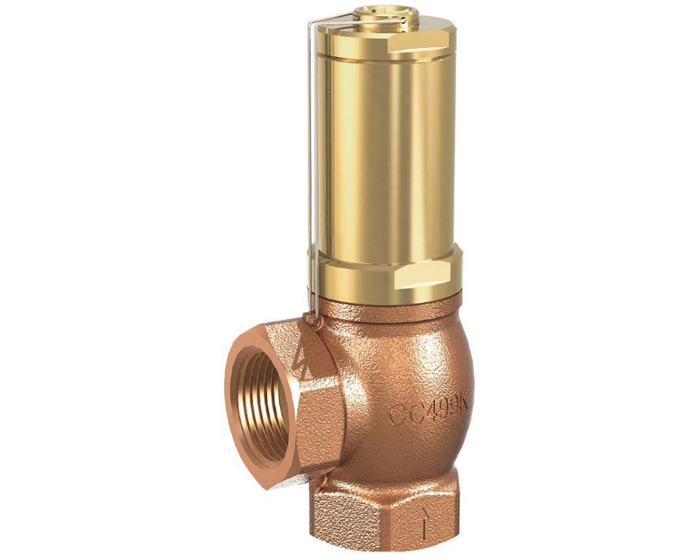

The overflow valve type 617 P is a bronze valve for pressure relief, e.g. downstream of a pump.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| DN | DN10 - 3/8'' |
| Body material | Bronze CC 499K |
| Upstream pressure range (bar) | 0.5 / 2.5 |
| Bearing | PTFE |
| PS (bar) | 20 |
| Connections | BSP FF |
| TS max (°C) | 225 |
| TS min (°C) | -60 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze CC 499K DN10 - 3/8'' 0.5 / 2.5 | 289251 | S1011750 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 0.5 / 2.5 | 289252 | S1011751 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 0.5 / 2.5 | 289253 | S1011752 |
€148.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 0.5 / 2.5 | 289254 | S1011753 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN32 - 1''1/4 0.5 / 2.5 | 289255 | S1011754 |
€262.29
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 0.5 / 2.5 | 289256 | S1011755 |
€404.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 0.5 / 2.5 | 289257 | S1011756 |
€585.37
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 2 / 12 | 289261 | S1011757 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 2 / 12 | 289262 | S1011758 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 2 / 12 | 289263 | S1011759 |
€148.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 2 / 12 | 289264 | S1011760 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN32 - 1''1/4 2 / 12 | 289265 | S1011761 |
€262.29
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 2 / 12 | 289266 | S1011762 |
€404.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 2 / 12 | 289267 | S1011763 |
€585.37
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 12 / 20 | 289271 | S1011764 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 12 / 20 | 289272 | S1011765 |
€109.11
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 12 / 20 | 289273 | S1011766 |
€148.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 12 / 20 | 289274 | S1011767 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN32 - 1''1/4 12 / 20 | 289275 | S1011768 |
€262.29
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 12 / 20 | 289276 | S1011769 |
€404.36
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 12 / 20 | 289277 | S1011770 |
€585.37
(excl. btw)
|
add to cart |
