Name: V-port ball valve 703XS + RES pneumatic actuator + YT 3300 positioner
SKU: 9890
Price: 1655.6571428571 EUR
Availability: InStock

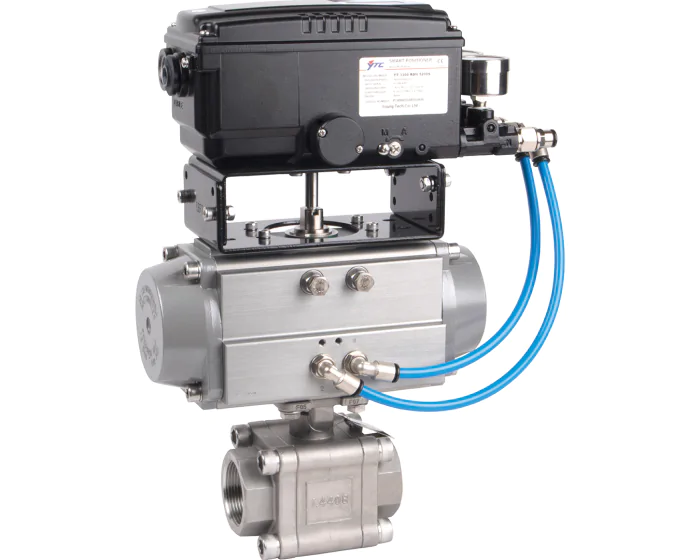

V-port ball valve 703XS + RES pneumatic actuator + YT 3300 positioner

€1,655.66 (excl. btw)

V-PORT valves are ideally suited to the control function. Body and ball in stainless steel 1.4408. 30° or 60° V-shaped ball. PTFE-glass seats. Single spring return pneumatic actuator. 4-20 mA rotary positioner.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Technical datasheet FR

Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
Delta P (bar)	10
Opening device/signal	4-20 mA
DN	DN15 - 1/2''
Kv (m³/h)	5.10
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Type of positioner	Intelligent
Packing gland	PTFE - Graphite
Connections	BSP FF
Function	Regulation
Electric actuator series	RE series (ALPHAIR)
TS max (°C)	220
TS min (°C)	-30
Warranty period	1 year
CE	Excluded (Article 4. §3)

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
9891	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 5.10	271372017106RV34	S1009807	€1,655.66 (excl. btw)	add to cart
9892	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 10.10	271372017106RV64	S1009808	€1,652.94 (excl. btw)	add to cart
9893	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 6.80	271373017106RV34	S1009809	€1,670.56 (excl. btw)	add to cart
9894	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 14.50	271373017106RV64	S1009810	€1,659.04 (excl. btw)	add to cart
9895	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 13.70	271374017107RV34	S1009811	€1,722.89 (excl. btw)	add to cart
9896	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 24.50	271374017107RV64	S1009812	€1,729.53 (excl. btw)	add to cart
9897	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 25.30	271376017109RV34	S1009813	€1,965.00 (excl. btw)	add to cart
9898	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 47.90	271376017109RV64	S1009814	€1,976.99 (excl. btw)	add to cart
9899	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 38.40	271377017110RV34	S1009815	€2,206.09 (excl. btw)	add to cart
9900	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 81.40	271377017110RV64	S1009816	€2,237.89 (excl. btw)	add to cart
