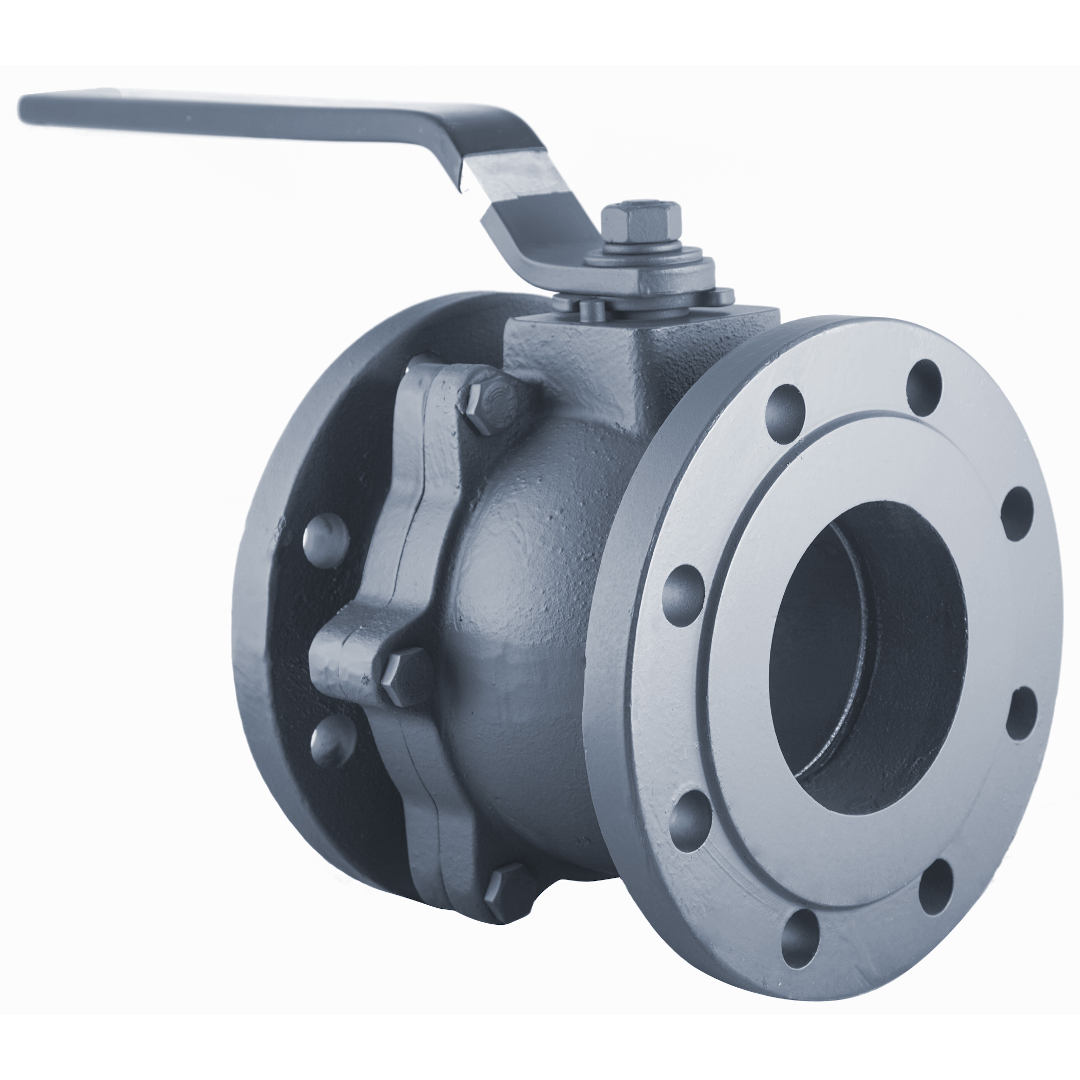

The 507D Series valve is a full bore ductile iron ball valve. It is manufactured to EN 558 series 27 face to face, suitable for heating, cooling, irrigation and compatible with ATEX Zone 1, 21, 2, and 22. Mount actuators easily with ISO 521
| Specification | Value |
|---|---|
| Opening device | Handle |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 115 |
| Body material | Ductile iron |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Full DN15 - 1/2'' | 507D015 | S1010088 |
€25.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN20 - 3/4'' | 507D020 | S1010089 |
€37.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN25 - 1'' | 507D025 | S1010090 |
€38.65
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN32 - 1''1/4 | 507D032 | S1010091 |
€48.65
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN40 - 1''1/2 | 507D040 | S1010092 |
€53.67
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN125 - 5'' | 507D126 | S1010093 |
€220.45
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN150 - 6'' | 507D151 | S1010094 |
€474.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Full DN200 - 8'' | 507D200 | S1010095 |
€657.31
(excl. btw)
|
add to cart |
