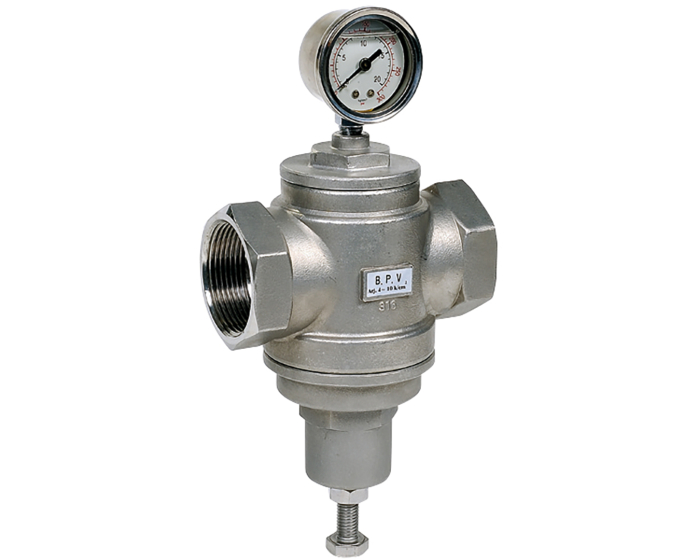

Steam pressure reducing valve, CF8M (1.4408) stainless steel body, stainless steel internal parts. PS : 9 bar - TS : 180°C. Rangeability : 10/1. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 285.0 |
| Kv (m³/h) | 1.4 |
| Body material | Stainless steel CF8M (1.4408) |
| Downstream pressure range (bar) | 1 / 6 |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 1 / 6 | 158101 | S1013129 |
€363.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 4 / 10 | 158102 | S1013130 |
€363.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 1 / 6 | 158111 | S1013131 |
€386.43
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 4 / 10 | 158112 | S1013132 |
€386.43
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 1 / 6 | 158121 | S1013133 |
€431.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 4 / 10 | 158122 | S1013134 |
€431.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 1 / 6 | 158301 | S1013135 |
€568.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 4 / 10 | 158302 | S1013136 |
€568.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 1 / 6 | 158311 | S1013137 |
€687.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 4 / 10 | 158312 | S1013138 |
€687.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 1 / 6 | 158321 | S1013139 |
€784.23
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 4 / 10 | 158322 | S1013140 |
€784.23
(excl. btw)
|
add to cart |
