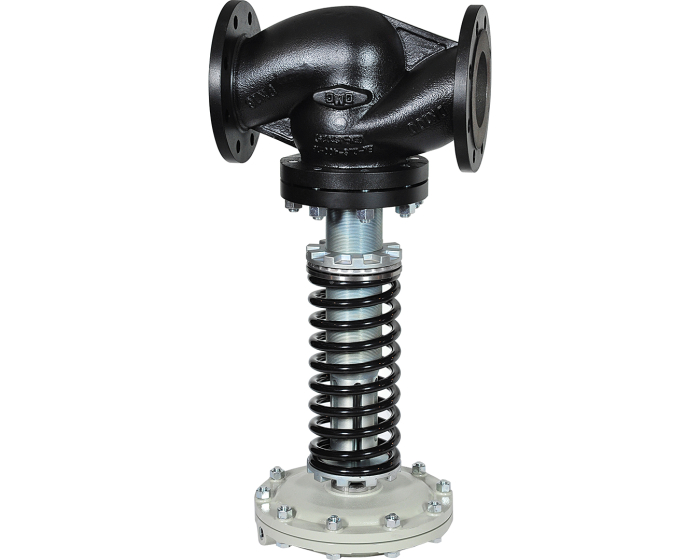

Allows to reduce steam pressure. PS: 16 bar - TS: 200°C. Rangeability: 10/1. Flanged connections PN16 RF. Condensation pot required.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 600.0 |
| Kv (m³/h) | 5.00 |
| Body material | Ductile iron |
| Downstream pressure range (bar) | 0.4 / 1 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | Metal/metal |
| TS max (°C) | 300 |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Ductile iron DN15 - 1/2'' 0.4 / 1 | 159015009 | S1013159 |
€2,399.14
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN15 - 1/2'' 0.9 / 1.8 | 159015018 | S1013160 |
€2,184.70
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN15 - 1/2'' 1.7 / 3 | 159015030 | S1013161 |
€1,939.46
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN15 - 1/2'' 2.8 / 5 | 159015050 | S1013162 |
€1,907.83
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN15 - 1/2'' 4.8 / 7 | 159015070 | S1013163 |
€1,810.26
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN15 - 1/2'' 6.8 / 15 | 159015140 | S1013164 |
€1,794.81
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 0.4 / 1 | 159020009 | S1013165 |
€2,420.39
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 0.9 / 1.8 | 159020018 | S1013166 |
€2,205.94
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 1.7 / 3 | 159020030 | S1013167 |
€1,960.70
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 2.8 / 5 | 159020050 | S1013168 |
€1,929.07
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 4.8 / 7 | 159020070 | S1013169 |
€1,831.51
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN20 - 3/4'' 6.8 / 15 | 159020140 | S1013170 |
€1,816.03
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 0.4 / 1 | 159025009 | S1013171 |
€2,426.14
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 0.9 / 1.8 | 159025018 | S1013172 |
€2,218.50
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 1.7 / 3 | 159025030 | S1013173 |
€1,972.61
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 2.8 / 5 | 159025050 | S1013174 |
€1,934.36
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 4.8 / 7 | 159025070 | S1013175 |
€1,836.00
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN25 - 1'' 6.8 / 15 | 159025140 | S1013176 |
€1,825.07
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 0.4 / 1 | 159032009 | S1013177 |
€2,551.23
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 0.9 / 1.8 | 159032018 | S1013178 |
€2,368.27
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 1.7 / 3 | 159032030 | S1013179 |
€2,058.81
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 2.8 / 5 | 159032050 | S1013180 |
€2,071.57
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 4.8 / 7 | 159032070 | S1013181 |
€1,961.51
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 6.8 / 15 | 159032140 | S1013182 |
€1,946.51
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 0.4 / 1 | 159040009 | S1013183 |
€2,628.41
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 0.9 / 1.8 | 159040018 | S1013184 |
€2,445.44
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 1.7 / 3 | 159040030 | S1013185 |
€2,163.86
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 2.8 / 5 | 159040050 | S1013186 |
€2,148.76
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 4.8 / 7 | 159040070 | S1013187 |
€2,038.70
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 6.8 / 15 | 159040140 | S1013188 |
€2,023.70
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 0.4 / 1 | 159050009 | S1013189 |
€2,822.43
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 0.9 / 1.8 | 159050018 | S1013190 |
€2,639.47
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 1.7 / 3 | 159050030 | S1013191 |
€2,382.43
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 2.8 / 5 | 159050050 | S1013192 |
€2,342.77
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 4.8 / 7 | 159050070 | S1013193 |
€2,232.73
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 0.4 / 1 | 159065009 | S1013194 |
€3,262.06
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 0.9 / 2 | 159065018 | S1013195 |
€3,079.10
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 1.9 / 5 | 159065030 | S1013196 |
€2,808.64
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 4.5 / 8.5 | 159065050 | S1013197 |
€2,782.40
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 8 / 15 | 159065070 | S1013198 |
€2,672.36
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 0.4 / 1 | 159080009 | S1013199 |
€4,018.27
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 0.9 / 2 | 159080018 | S1013200 |
€3,835.33
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 1.9 / 5 | 159080030 | S1013201 |
€3,525.89
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 4.5 / 11.5 | 159080050 | S1013202 |
€3,538.63
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 11 / 15 | 159080070 | S1013203 |
€3,428.59
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 0.4 / 1 | 159091009 | S1013204 |
€4,342.06
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 0.9 / 2.6 | 159091018 | S1013205 |
€4,159.09
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 2.5 / 8.5 | 159091030 | S1013206 |
€3,849.64
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 8 / 15 | 159091050 | S1013207 |
€3,862.40
(excl. btw)
|
add to cart |
