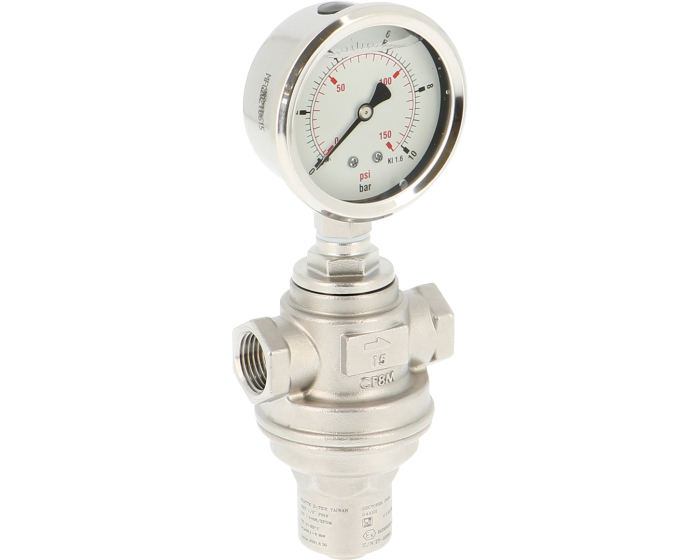

The ELITE pressure reducing valve type PRV in threaded stainless steel is designed for the pressure reducing function of fluids such as water, air, uncharged liquids and compatible gases.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Sealing | FKM |
| Gasket | FKM |
| Kv (m³/h) | 2.10 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Downstream pressure range (bar) | 1 / 6 |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 100 |
| TS min (°C) | -15 |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 1 / 6 | 244001 | S1011981 |
€344.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 4 / 10 | 244002 | S1011982 |
€344.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 1 / 6 | 244011 | S1011983 |
€344.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 4 / 10 | 244012 | S1011984 |
€344.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 1 / 6 | 244021 | S1011985 |
€415.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 4 / 10 | 244022 | S1011986 |
€415.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 1 / 6 | 244031 | S1011987 |
€710.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 4 / 10 | 244032 | S1011988 |
€710.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 1 / 6 | 244041 | S1011989 |
€797.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 4 / 10 | 244042 | S1011990 |
€797.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' NPT FF 1 / 6 | 244201 | S1011991 |
€281.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' NPT FF 1 / 6 | 244211 | S1011992 |
€344.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' NPT FF 1 / 6 | 244221 | S1011993 |
€431.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 1 / 6 | 245001 | S1011994 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Flanged PN16 4 / 10 | 245002 | S1011995 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 1 / 6 | 245011 | S1011996 |
€579.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Flanged PN16 4 / 10 | 245012 | S1011997 |
€579.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 1 / 6 | 245021 | S1011998 |
€795.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Flanged PN16 4 / 10 | 245022 | S1011999 |
€795.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged PN16 1 / 6 | 245031 | S1012000 |
€1,102.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Flanged PN16 4 / 10 | 245032 | S1012001 |
€1,102.49
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Flanged PN16 1 / 6 | 245041 | S1012002 |
€1,184.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Flanged PN16 4 / 10 | 245042 | S1012003 |
€1,184.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN65 - 2''1/2 Flanged PN16 1 / 6 | 245051 | S1012004 |
€2,333.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN65 - 2''1/2 Flanged PN16 4 / 10 | 245052 | S1012005 |
€2,333.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN80 - 3'' Flanged PN16 1 / 6 | 245061 | S1012006 |
€2,898.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN80 - 3'' Flanged PN16 4 / 10 | 245062 | S1012007 |
€2,898.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN100 - 4'' Flanged PN16 1 / 6 | 245071 | S1012008 |
€3,296.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN100 - 4'' Flanged PN16 4 / 10 | 245072 | S1012009 |
€3,296.06
(excl. btw)
|
add to cart |
