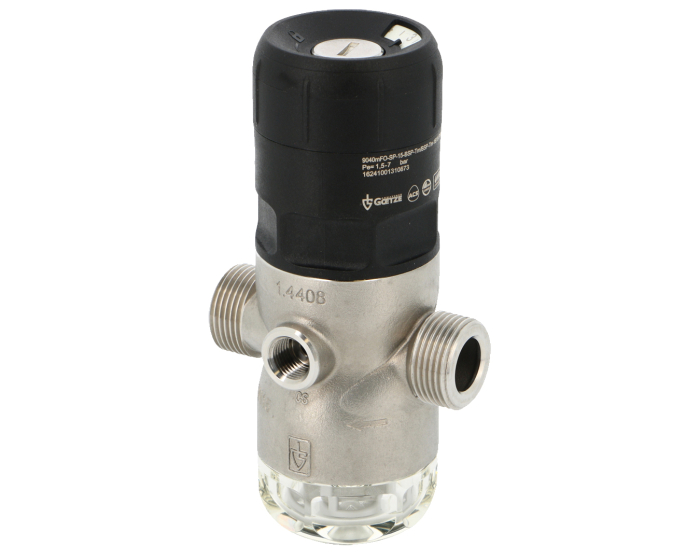

The 9040 pressure reducing valve is designed to reduce pressure in water supply circuits. Designed with a 1.4408 stainless steel body. EPDM tightness. Built-in stainless steel strainer. ACS certification.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| Maximum flow rate (m³/h) | 3 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 136 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 3.4 |
| Body material | Stainless steel CF8M (1.4408) |
| Downstream pressure range (bar) | 0.5 / 3 |
| PS (bar) | 16 |
| Connections | Threaded G male / male + union fittings |
| TS max (°C) | 40 |
| TS min (°C) | 5 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN15 - 1/2'' 0.5 / 3 16 | 246680 | S1012202 |
€415.44
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN20 - 3/4'' 0.5 / 3 16 | 246681 | S1012203 |
€471.03
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN25 - 1'' 0.5 / 3 16 | 246682 | S1012204 |
€577.31
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN32 - 1''1/4 0.5 / 3 16 | 246683 | S1012205 |
€765.00
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN40 - 1''1/2 0.5 / 3 16 | 246684 | S1012206 |
€1,018.27
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN50 - 2'' 0.5 / 3 16 | 246685 | S1012207 |
€1,324.83
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN15 - 1/2'' 3 / 12 16 | 246780 | S1012208 |
€415.44
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN20 - 3/4'' 3 / 12 16 | 246781 | S1012209 |
€471.03
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN25 - 1'' 3 / 12 16 | 246782 | S1012210 |
€577.31
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN32 - 1''1/4 3 / 12 16 | 246783 | S1012211 |
€765.00
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN40 - 1''1/2 3 / 12 16 | 246784 | S1012212 |
€1,018.27
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN50 - 2'' 3 / 12 16 | 246785 | S1012213 |
€1,324.83
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN15 - 1/2'' 1.5 / 7 16 | 246880 | S1012214 |
€415.44
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN20 - 3/4'' 1.5 / 7 16 | 246881 | S1012215 |
€471.03
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN25 - 1'' 1.5 / 7 16 | 246882 | S1012216 |
€577.31
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN32 - 1''1/4 1.5 / 7 16 | 246883 | S1012217 |
€765.00
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN40 - 1''1/2 1.5 / 7 16 | 246884 | S1012218 |
€1,018.27
(excl. btw)
|
add to cart |
| Threaded G male / male + union fittings Stainless steel CF8M (1.4408) DN50 - 2'' 1.5 / 7 16 | 246885 | S1012219 |
€1,324.83
(excl. btw)
|
add to cart |
