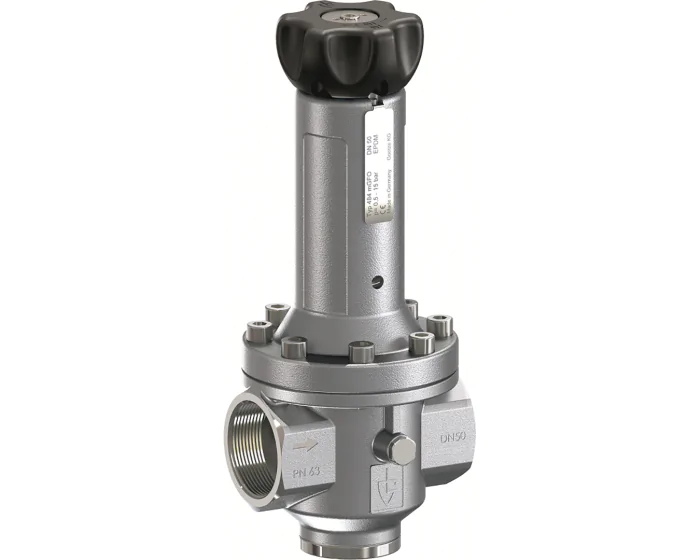

The Type 484 HP stainless steel pressure reducing valve is designed to reduce pressure in high-pressure water, compressed air or process circuits.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 210.0 |
| Sealing | FKM |
| Gasket | FKM |
| Kv (m³/h) | 1.60 |
| Body material | Stainless steel CF8M (1.4408) |
| Downstream pressure range (bar) | 0.5 / 15 |
| PS (bar) | 60 |
| Connections | BSP FF |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 0.5 / 15 | 246962 | S1012295 |
€926.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 0.5 / 15 | 246963 | S1012296 |
€1,139.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 0.5 / 15 | 246964 | S1012297 |
€1,540.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 0.5 / 15 | 246965 | S1012298 |
€2,303.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 0.5 / 15 | 246966 | S1012299 |
€2,373.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 5 / 30 | 246972 | S1012300 |
€926.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 5 / 30 | 246973 | S1012301 |
€1,139.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 5 / 30 | 246974 | S1012302 |
€1,540.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 5 / 30 | 246975 | S1012303 |
€2,303.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 5 / 30 | 246976 | S1012304 |
€2,373.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 10 / 50 | 246982 | S1012305 |
€926.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 10 / 50 | 246983 | S1012306 |
€1,139.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 10 / 50 | 246984 | S1012307 |
€1,540.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 10 / 50 | 246985 | S1012308 |
€2,303.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 10 / 50 | 246986 | S1012309 |
€2,373.69
(excl. btw)
|
add to cart |
