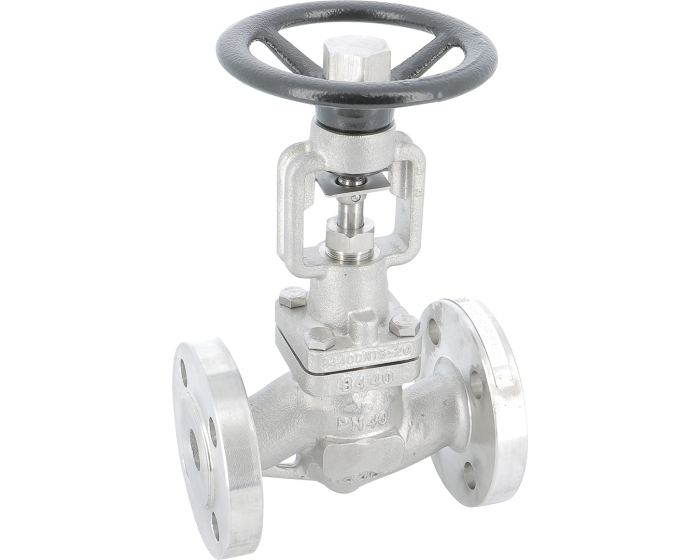

The series 472T globe valve is made of stainless steel body and bellow, and PTFE plug, flanged PN40/16, with non-rising stem, plug and conical seat, bolted bonnet and gland. It complies with CE 1935/2004 for food compatibility.
| Specification | Value |
|---|---|
| CE risk category | III Module H |
| Brand | ICP VALVES |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 3.8 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| TS max (°C) | 200 |
| TS min (°C) | -50 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN15 - 1/2'' | 472T015 | S1010790 |
€399.73
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN20 - 3/4'' | 472T020 | S1010791 |
€482.57
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN25 - 1'' | 472T025 | S1010792 |
€558.80
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 472T032 | S1010793 |
€660.67
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 472T040 | S1010794 |
€842.54
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN50 - 2'' | 472T050 | S1010795 |
€966.10
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) 65-8 Holes | 472T065 | S1010796 |
€1,554.96
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN80 - 3'' | 472T080 | S1010797 |
€2,034.86
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN100 - 4'' | 472T100 | S1010798 |
€2,546.91
(excl. btw)
|
add to cart |
