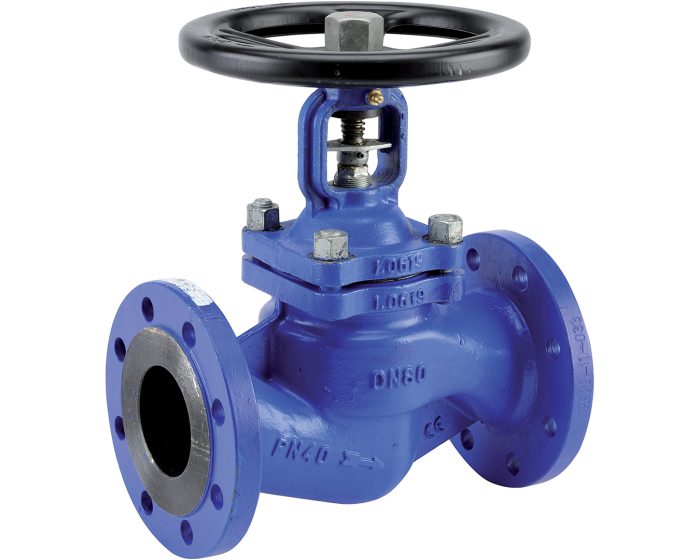

The series 475 globe valve is made of carbon steel A216WCB, with stainless steel bellow, flanges RF PN40, EN 558 series 1 face to face, stainless steel stem, globe and seat, bolted bonnet and gland pack. For non-corrosive fluids and steam.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Carbon steel ASTM A216 WCB |
| Type of seat | parallel |
| Construction standard | DIN 3840 |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 40 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 series 1 |
| Brand | ICP VALVES |
| Flange type | RF |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 303 |
| Opening device/signal | Manual |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Kv (m³/h) | 3.8 |
| Body material | Carbon steel A216 WCB (1.0619) |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| RAL (Paint) | 5002 |
| Seats | Stainless steel X22 CrNi17 |
| TS max (°C) | 400 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| CE | Yes |
| Plug material | Stainless steel AISI 420 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN15 - 1/2'' | 475015 | S1010769 |
€144.97
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN20 - 3/4'' | 475020 | S1010770 |
€151.76
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN25 - 1'' | 475025 | S1010771 |
€164.23
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 | 475032 | S1010772 |
€219.71
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 | 475040 | S1010773 |
€276.33
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN50 - 2'' | 475050 | S1010774 |
€347.70
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 | 475065 | S1010775 |
€480.19
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN80 - 3'' | 475080 | S1010776 |
€636.49
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN100 - 4'' | 475100 | S1010777 |
€807.51
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN125 - 5'' | 475125 | S1010778 |
€1,277.51
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN150 - 6'' | 475150 | S1010779 |
€1,455.34
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN200 - 8'' | 475200 | S1010780 |
€4,802.89
(excl. btw)
|
add to cart |
