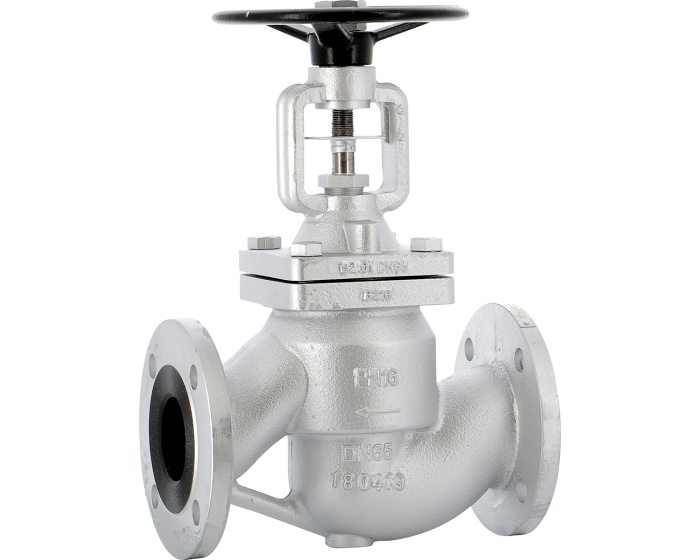

The series 476 globe valve is made of ductile iron with stainless steel bellow, stem, globe and seat, non-rising stem, flanged RF PN16, EN 558 seies 1 face to face. For non-corrosive fluids, steam, thermal fluids, air, cold or hot water.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Carbon steel ASTM A216 WCB |
| Type of seat | parallel |
| Construction standard | DIN 3840 |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 40 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 series 1 |
| Brand | ICP VALVES |
| Flange type | RF |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 303 |
| Opening device/signal | Manual |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 3.8 |
| Body material | Ductile iron |
| PS (bar) | 25 |
| Connections | Flanged PN25 |
| RAL (Paint) | 9006 |
| Seats | Stainless steel X22 CrNi17 |
| TS max (°C) | 350 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| CE | Yes |
| Plug material | Stainless steel AISI 420 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN25 Ductile iron DN15 - 1/2'' | 476015 | S1010740 |
€99.90
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN20 - 3/4'' | 476020 | S1010741 |
€105.09
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN25 - 1'' | 476025 | S1010742 |
€118.61
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN32 - 1''1/4 | 476032 | S1010743 |
€139.44
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN40 - 1''1/2 | 476040 | S1010744 |
€160.24
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN50 - 2'' | 476050 | S1010745 |
€186.26
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN65 - 2''1/2 | 476065 | S1010746 |
€255.99
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN80 - 3'' | 476080 | S1010747 |
€327.79
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN100 - 4'' | 476100 | S1010748 |
€438.09
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN125 - 5'' | 476125 | S1010749 |
€675.36
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN150 - 6'' | 476150 | S1010750 |
€851.20
(excl. btw)
|
add to cart |
| Flanged PN25 Ductile iron DN200 - 8'' | 476200 | S1010751 |
€2,322.59
(excl. btw)
|
add to cart |
