Name: Stainless steel ball valve 715XS 2-piece body BSP + limit switch box
SKU: 49
Price: 409.8 EUR
Availability: InStock

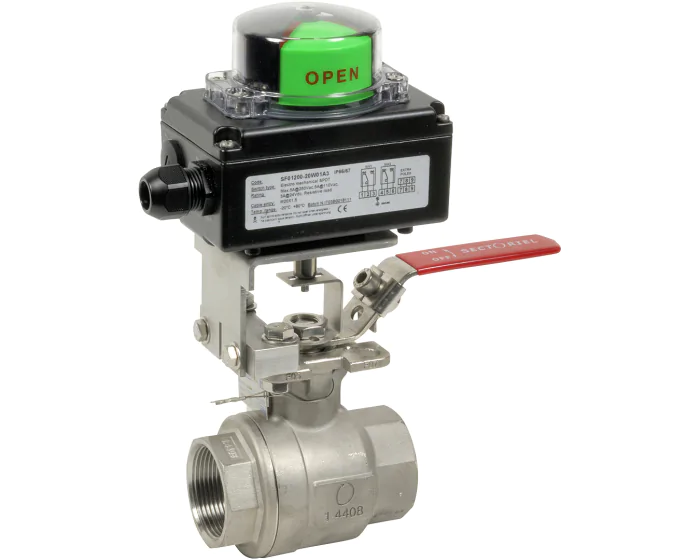

Stainless steel ball valve 715XS 2-piece body BSP + limit switch box

€409.80 (excl. btw)

The stainless steel 715XS ball valve with 2-piece BSP body and SF012 limit switch box ensures precise open/close position control. Full bore, robust and ATEX-ready, it offers reliable automation for demanding industrial fluid networks.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Shaft/stem matérial	Stainless steel 316
Switch type	dry SPDT
DN	DN15 - 1/2''
Face to Face (mm)	55.0
Protection index (IP)	IP 67
Gasket	PTFE
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
PS (bar)	63
Connections	BSP FF
Seats	PTFE-Glass
TS max (°C)	180
TS min (°C)	-40
Ball valve design	2-piece body
Warranty period	1 year

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
50	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN15 - 1/2'' BSP FF	2724020462012	S1007741	€409.80 (excl. btw)	add to cart
51	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN20 - 3/4'' BSP FF	2724030462012	S1007742	€411.43 (excl. btw)	add to cart
52	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN25 - 1'' BSP FF	2724040462012	S1007743	€428.40 (excl. btw)	add to cart
53	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN32 - 1''1/4 BSP FF	2724050462012	S1007744	€433.50 (excl. btw)	add to cart
54	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN40 - 1''1/2 BSP FF	2724060462012	S1007745	€454.79 (excl. btw)	add to cart
55	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN50 - 2'' BSP FF	2724070462012	S1007746	€532.00 (excl. btw)	add to cart
56	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN15 - 1/2'' NPT FF	2724120462012	S1007747	€409.80 (excl. btw)	add to cart
57	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN20 - 3/4'' NPT FF	2724130462012	S1007748	€411.43 (excl. btw)	add to cart
58	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN25 - 1'' NPT FF	2724140462012	S1007749	€428.40 (excl. btw)	add to cart
59	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN32 - 1''1/4 NPT FF	2724150462012	S1007750	€433.50 (excl. btw)	add to cart
60	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN40 - 1''1/2 NPT FF	2724160462012	S1007751	€454.79 (excl. btw)	add to cart
61	BSP FF Stainless steel CF8M (1.4408) 2-piece body DN50 - 2'' NPT FF	2724170462012	S1007752	€532.00 (excl. btw)	add to cart
