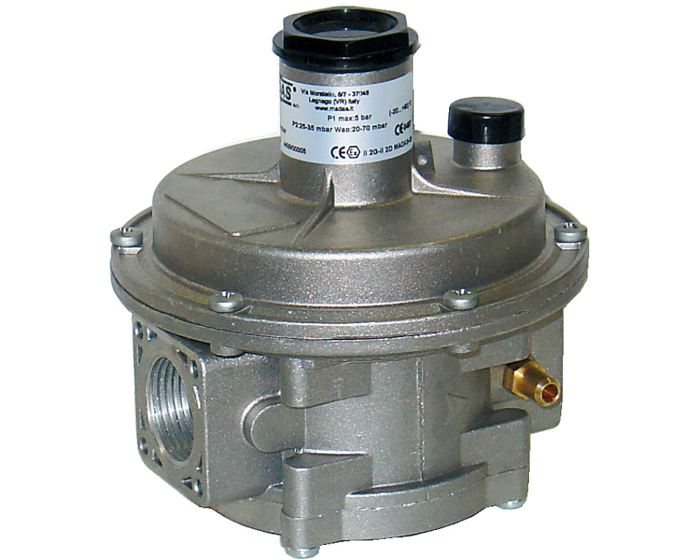

Gas regulator filter FRG/2MCS to relieve the gas pressure at the burner pressure. Aluminium body. PS: 5 bar. TS: -15 / +60°C. With valve. CE certification according to EN 88-2.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Filter cartridge (µm) | 50 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 120.0 |
| Filtration (µm) | 50 |
| Fluid | Natural gas |
| Body material | Aluminium |
| Setting range (mbar) | 20 / 30 |
| PS (bar) | 5 |
| PS (mbar) | 5000 |
| Connections | BSP FF |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| ATEX zone | 1.2.21.22 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN15 - 1/2'' BSP FF 20 / 30 | 094104M | S1013006 |
€116.20
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN20 - 3/4'' BSP FF 20 / 30 | 094105M | S1013007 |
€116.20
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' BSP FF 20 / 30 | 094106M | S1013008 |
€116.20
(excl. btw)
|
add to cart |
