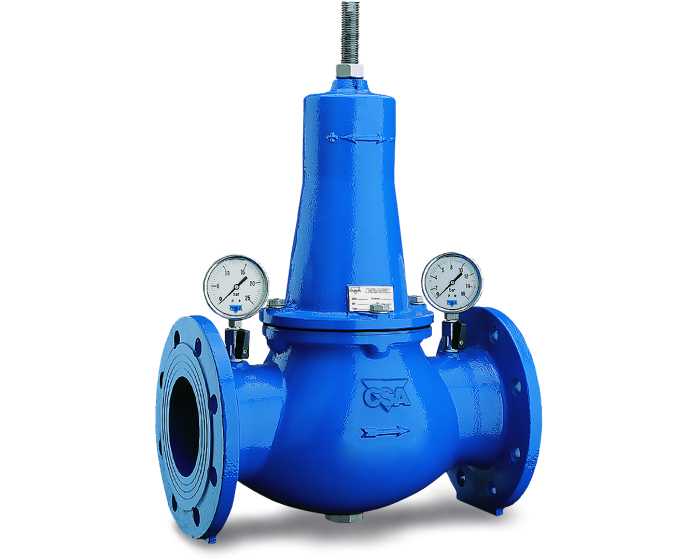

Discover our stabilizer from the CSA range. Body in cast iron GJS 450-10 epoxy coated RAL 5005, internal parts in bronze and stainless steel, stainless steel screws, gasket in NBR, spring in 52SiCrNi5 epoxy coated.
| Specification | Value |
|---|---|
| Construction standard | EN 1074-4 |
| EN face-to-face standard | EN 558 Series 1 |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 230.0 |
| Fluid | Cold water / drinking water |
| Body material | Ductile iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | RAL5005 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron DN50 - 2'' | 496050 | S1010553 |
€1,044.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN65 - 2''1/2 | 496065 | S1010554 |
€1,322.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' | 496080 | S1010555 |
€1,555.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' | 496100 | S1010556 |
€1,999.19
(excl. btw)
|
add to cart |
