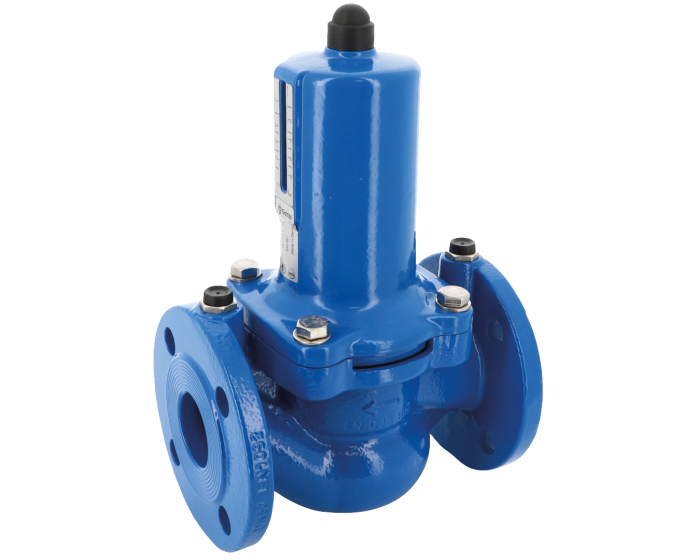

Cast iron pressure reducer 382
€1,207.61
(excl. btw)
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN50 - 2'' |
| Face to Face (mm) | 230 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 24 |
| Body material | Ductile iron |
| Downstream pressure range (bar) | 1.5 / 7 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| TS max (°C) | 65 |
| TS min (°C) | 5 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Ductile iron DN50 - 2'' 1.5 / 7 | 246850 | S1012187 |
€1,207.61
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 1.5 / 7 | 246851 | S1012188 |
€1,452.41
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 1.5 / 7 | 246852 | S1012189 |
€1,858.96
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 1.5 / 7 | 246853 | S1012190 |
€3,504.80
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN125 - 5'' 1.5 / 7 | 246854 | S1012191 |
€4,986.71
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 3 / 12 | 246860 | S1012192 |
€1,207.61
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 3 / 12 | 246861 | S1012193 |
€1,452.41
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 3 / 12 | 246862 | S1012194 |
€1,858.96
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 3 / 12 | 246863 | S1012195 |
€3,504.80
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN125 - 5'' 3 / 12 | 246864 | S1012196 |
€4,986.71
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 0.5 / 3 | 246870 | S1012197 |
€1,207.61
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN65 - 2''1/2 0.5 / 3 | 246871 | S1012198 |
€1,452.41
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN80 - 3'' 0.5 / 3 | 246872 | S1012199 |
€1,858.96
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN100 - 4'' 0.5 / 3 | 246873 | S1012200 |
€3,504.80
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN125 - 5'' 0.5 / 3 | 246874 | S1012201 |
€4,986.71
(excl. btw)
|
add to cart |
