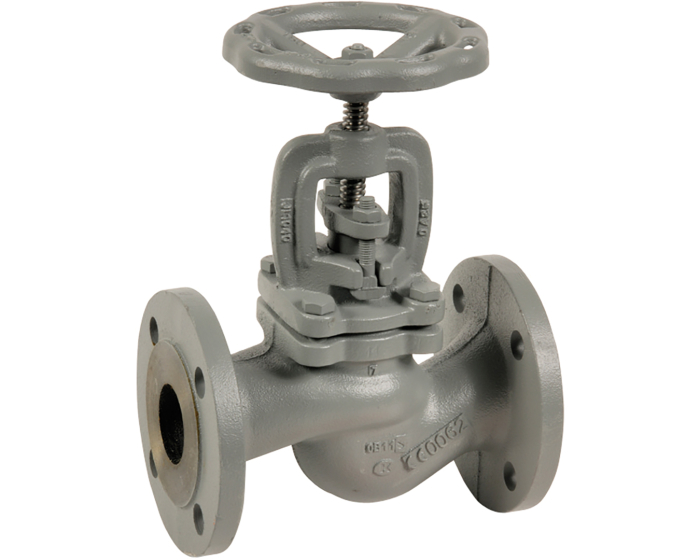

The series 479 globe valve is made of cast iron body, stainless steel stem, globe and seat, rising stem and handwheel, flanged RF PN16, EN 558 seies 1 face to face. For high temperature, non-corrosive and non-toxic fluids and steam.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Cast iron EN GJL-250 |
| Type of seat | parallel |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 50 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 series 1 |
| Flange type | RF |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Opening device/signal | Manual |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 5.9 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 7011 |
| Seats | Stainless steel AISI 410 |
| TS max (°C) | 300 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Stainless steel AISI 420 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron DN15 - 1/2'' | 479015 | S1010723 |
€52.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN20 - 3/4'' | 479020 | S1010724 |
€55.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN25 - 1'' | 479025 | S1010725 |
€68.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN32 - 1''1/4 | 479032 | S1010726 |
€83.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN40 - 1''1/2 | 479040 | S1010727 |
€87.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN50 - 2'' | 479050 | S1010728 |
€109.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN65 - 2''1/2 | 479065 | S1010729 |
€167.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN80 - 3'' | 479080 | S1010730 |
€217.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN100 - 4'' | 479100 | S1010731 |
€320.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN125 - 5'' | 479125 | S1010732 |
€445.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN150 - 6'' | 479150 | S1010733 |
€584.87
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' | 479200 | S1010734 |
€1,413.76
(excl. btw)
|
add to cart |
