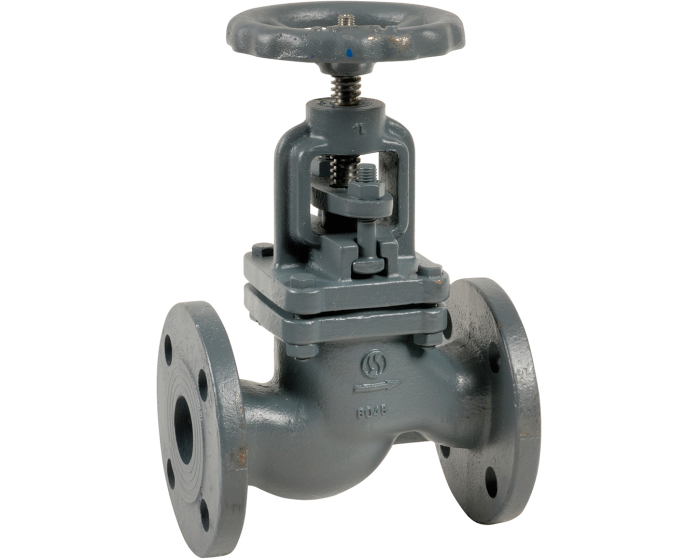

The series 470 globe valve is made of cast iron GJL-250, flanges RF PN16, EN 558 series 1 face to face, stainless steel stem and seat, bolted bonnet and packing gland and rising stem. For water supply, sewerage and heating networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Cast iron EN GJL-250 |
| Type of seat | parallel |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 90 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 series 1 |
| Flange type | RF |
| Tightness test standard | EN 12266-1. Rate B |
| Opening device | Handwheel |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Opening device/signal | Manual |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Fluid | Hot / Cold water |
| Kv (m³/h) | 5.9 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 7011 |
| Seats | Stainless steel AISI 420 |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Cast iron + Stainless steel AISI 420 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron DN15 - 1/2'' | 470015 | S1010710 |
€28.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN20 - 3/4'' | 470020 | S1010711 |
€31.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN25 - 1'' | 470025 | S1010712 |
€46.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN32 - 1''1/4 | 470032 | S1010713 |
€64.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN40 - 1''1/2 | 470040 | S1010714 |
€77.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN50 - 2'' | 470050 | S1010715 |
€100.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN65 - 2''1/2 | 470065 | S1010716 |
€116.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN80 - 3'' | 470080 | S1010717 |
€160.24
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN100 - 4'' | 470100 | S1010718 |
€217.73
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN125 - 5'' | 470125 | S1010719 |
€337.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN150 - 6'' | 470150 | S1010720 |
€469.21
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' | 470200 | S1010721 |
€781.33
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN250 - 10'' | 470250 | S1010722 |
€1,437.27
(excl. btw)
|
add to cart |
