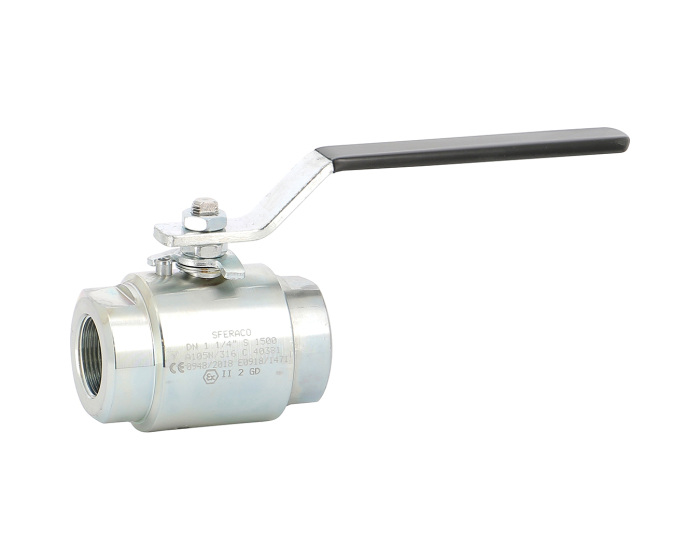

The 734 series ball valve, 2-piece body, made of forged carbon steel, Class 1500, for shutting off fluids in oils and gas industry. NPT and BSP connections are available.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module B+C2 |
| NACE MR0175 | Yes |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598 |
| Stem sealing material | FKM O-ring |
| Antistatic device | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 67.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel ASTM A105 N |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| PS (bar) | 255 |
| Connections | BSP FF |
| Seats | PEEK |
| Ball material | Stainless steel ASTM A276 316L |
| TS max (°C) | 250 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Carbon steel |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel ASTM A105 N Full 2-piece body BSP FF DN8 - 1/4'' | 734002 | S1006602 |
€92.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body BSP FF DN10 - 3/8'' | 734003 | S1006603 |
€92.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN15 - 1/2'' BSP FF | 734004 | S1006604 |
€101.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN20 - 3/4'' BSP FF | 734005 | S1006605 |
€130.59
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN25 - 1'' BSP FF | 734006 | S1006606 |
€168.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN32 - 1''1/4 BSP FF | 734007 | S1006607 |
€216.14
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN40 - 1''1/2 BSP FF | 734008 | S1006608 |
€305.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN50 - 2'' BSP FF | 734009 | S1006609 |
€403.01
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body NPT FF DN8 - 1/4'' | 734102 | S1006610 |
€92.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body NPT FF DN10 - 3/8'' | 734103 | S1006611 |
€92.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN15 - 1/2'' NPT FF | 734104 | S1006612 |
€101.31
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN20 - 3/4'' NPT FF | 734105 | S1006613 |
€130.59
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN25 - 1'' NPT FF | 734106 | S1006614 |
€168.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN32 - 1''1/4 NPT FF | 734107 | S1006615 |
€216.14
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN40 - 1''1/2 NPT FF | 734108 | S1006616 |
€305.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Full 2-piece body DN50 - 2'' NPT FF | 734109 | S1006617 |
€403.01
(excl. btw)
|
add to cart |
