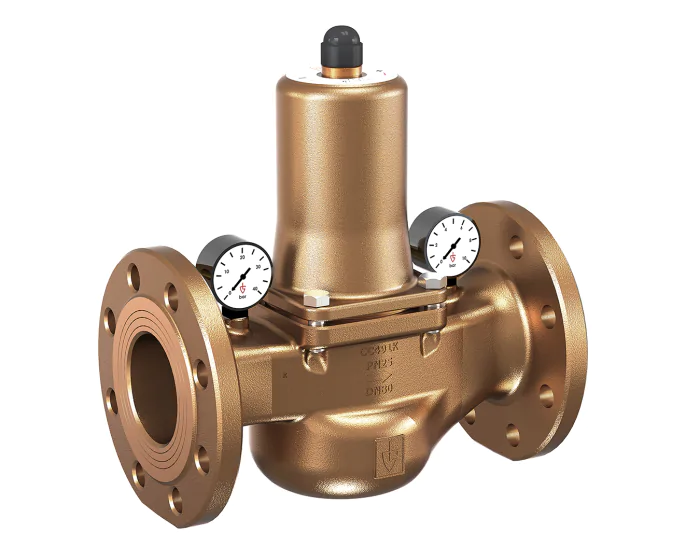

The pressure reducing valve 682 made of gunmetal with flanges PN16 is designed for the pressure reducing function in water, drinking water or compressed air supply systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN20 - 3/4'' |
| Face to Face (mm) | 690.0 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 5.80 |
| Body material | Bronze CC 499K |
| Downstream pressure range (bar) | 1 / 8 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| TS max (°C) | 95 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Bronze CC 499K DN20 - 3/4'' | 246823 | S1011887 |
€622.61
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN25 - 1'' | 246824 | S1011888 |
€671.21
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN32 - 1''1/4 | 246825 | S1011889 |
€819.64
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN40 - 1''1/2 | 246826 | S1011890 |
€873.20
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN50 - 2'' | 246827 | S1011891 |
€1,171.60
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN65 - 2''1/2 | 246828 | S1011892 |
€1,627.53
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN80 - 3'' | 246829 | S1011893 |
€2,099.56
(excl. btw)
|
add to cart |
| Flanged PN16 Bronze CC 499K DN100 - 4'' | 246830 | S1011894 |
€4,022.96
(excl. btw)
|
add to cart |
