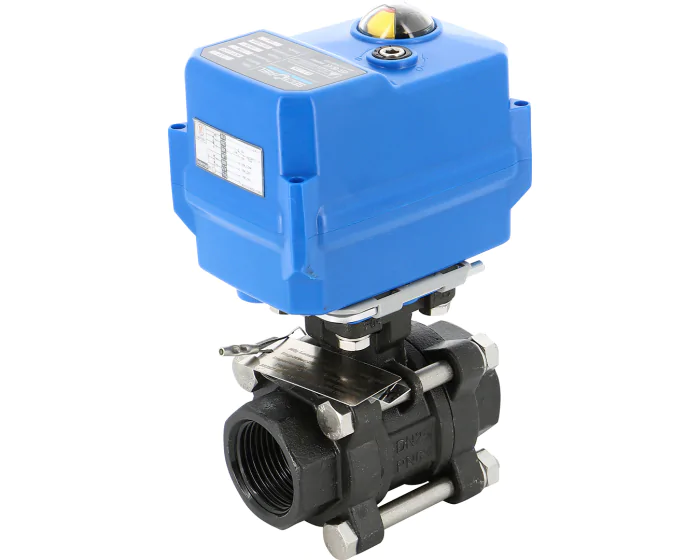

The 3-piece ball valve 737 XS has a 1.0619 carbon steel body, stainless steel ball and PTFE/stainless steel seats. Electric actuator TCR-N. PS: 63 bar, TS: 180°C. Threaded or weldable.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN50 - 2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 63 |
| Connections | Welding SW |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Stainless steel |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 220 |
| TS min (°C) | -25 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 15 | 271212024110D | S1004536 |
€288.19
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 20 | 271213024110D | S1004537 |
€299.27
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 25 | 271214024110D | S1004538 |
€275.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 32 | 271215024310D | S1004539 |
€391.23
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 40 | 271216024310D | S1004540 |
€391.11
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 50 | 271217024310D | S1004541 |
€507.01
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 15 | 271232024110D | S1004542 |
€288.19
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 20 | 271233024110D | S1004543 |
€299.27
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 25 | 271234024110D | S1004544 |
€275.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 32 | 271235024310D | S1004545 |
€391.23
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 40 | 271236024310D | S1004546 |
€391.11
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body 50 | 271237024310D | S1004547 |
€507.01
(excl. btw)
|
add to cart |
