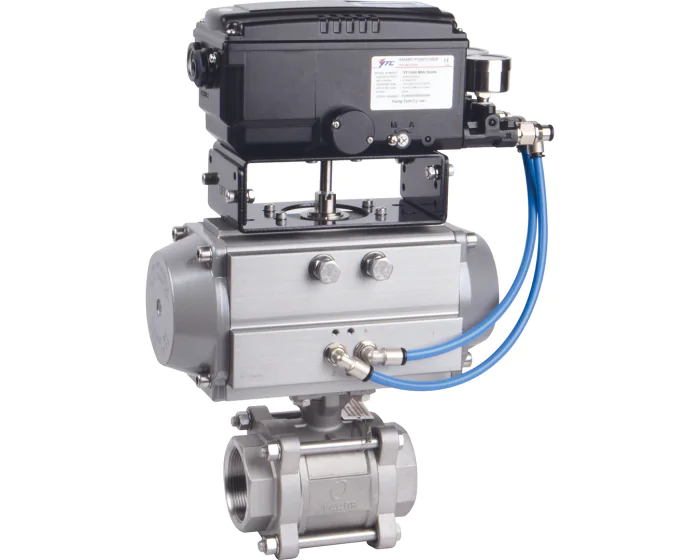

V-PORT valves are ideally suited to the control function. Body and ball in stainless steel 1.4408. 30° or 60° V-shaped ball. PTFE-glass seats. Single spring return pneumatic actuator. 4-20 mA rotary positioner.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 10 |
| DN | DN15 - 1/2'' |
| Kv (m³/h) | 5.10 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| Connections | BSP FF |
| Function | Regulation |
| Electric actuator series | RE series (ALPHAIR) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 5.10 | 272642017104RV34 | S1009776 |
€1,613.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 10.10 | 272642017104RV64 | S1009777 |
€1,610.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 6.80 | 272643017106RV34 | S1009778 |
€1,660.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 14.50 | 272643017106RV64 | S1009779 |
€1,649.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 13.70 | 272644017107RV34 | S1009780 |
€1,703.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 24.50 | 272644017107RV64 | S1009781 |
€1,710.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 47.90 | 272646017109RV64 | S1009782 |
€1,951.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 38.40 | 272647017110RV34 | S1009783 |
€2,092.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 81.40 | 272647017110RV64 | S1009784 |
€2,124.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding BW 5.10 | 272662017104RV34 | S1009785 |
€1,613.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding BW 10.10 | 272662017104RV64 | S1009786 |
€1,610.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding BW 6.80 | 272663017106RV34 | S1009787 |
€1,660.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding BW 14.50 | 272663017106RV64 | S1009788 |
€1,649.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding BW 13.70 | 272664017107RV34 | S1009789 |
€1,703.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding BW 24.50 | 272664017107RV64 | S1009790 |
€1,710.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding BW 25.30 | 272666017109RV34 | S1009791 |
€1,939.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding BW 47.90 | 272666017109RV64 | S1009792 |
€1,951.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding BW 38.40 | 272667017110RV34 | S1009793 |
€2,092.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding BW 81.40 | 272667017110RV64 | S1009794 |
€2,124.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding SW 5.10 | 272682017104RV34 | S1009795 |
€1,613.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding SW 10.10 | 272682017104RV64 | S1009796 |
€1,610.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding SW 6.80 | 272683017106RV34 | S1009797 |
€1,660.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding SW 14.50 | 272683017106RV64 | S1009798 |
€1,649.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding SW 13.70 | 272684017107RV34 | S1009799 |
€1,703.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding SW 24.50 | 272684017107RV64 | S1009800 |
€1,710.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding SW 25.30 | 272686017109RV34 | S1009801 |
€1,939.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding SW 47.90 | 272686017109RV64 | S1009802 |
€1,951.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding SW 38.40 | 272687017110RV34 | S1009803 |
€2,092.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding SW 81.40 | 272687017110RV64 | S1009804 |
€2,124.60
(excl. btw)
|
add to cart |
