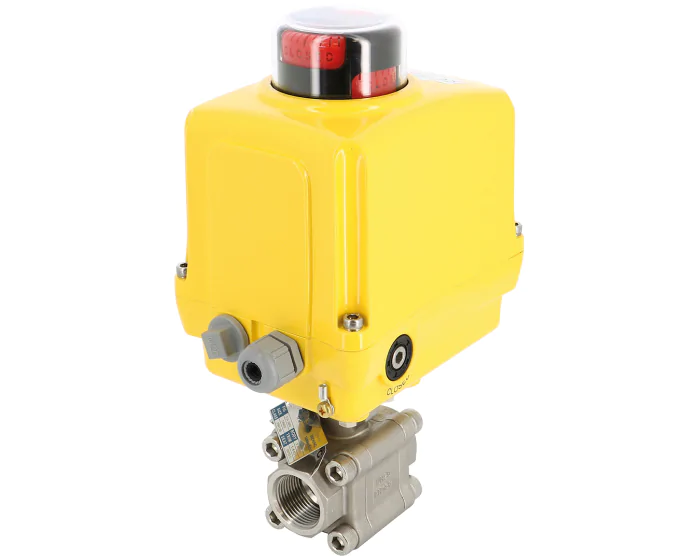

V-PORT valves are ideally suited to the control function. Body and ball in stainless steel 1.4408. 30° or 60° V-shaped ball. PTFE-glass seats. 1/4 turn electric actuator SA PCU 4-20 mA.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 10 |
| Opening device/signal | 4-20 mA / 0-10 V |
| Flow rate coefficient CV (gpm) | 6.0 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Protection index (IP) | IP 67 |
| Kv (m³/h) | 5.10 |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| Packing gland | PTFE - Graphite |
| PS (bar) | 137 |
| Power (VA) | 6.0 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | SA05 PCU |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 5.10 | 271372023050V3P | S1009861 |
€1,224.93
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 10.10 | 271372023050V6P | S1009862 |
€1,221.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 6.80 | 271373023050V3P | S1009863 |
€1,239.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 14.50 | 271373023050V6P | S1009864 |
€1,227.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 13.70 | 271374023050V3P | S1009865 |
€1,273.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24.50 | 271374023050V6P | S1009866 |
€1,280.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 25.30 | 271376023050V3P | S1009867 |
€1,405.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 47.90 | 271376023050V6P | S1009868 |
€1,417.39
(excl. btw)
|
add to cart |
