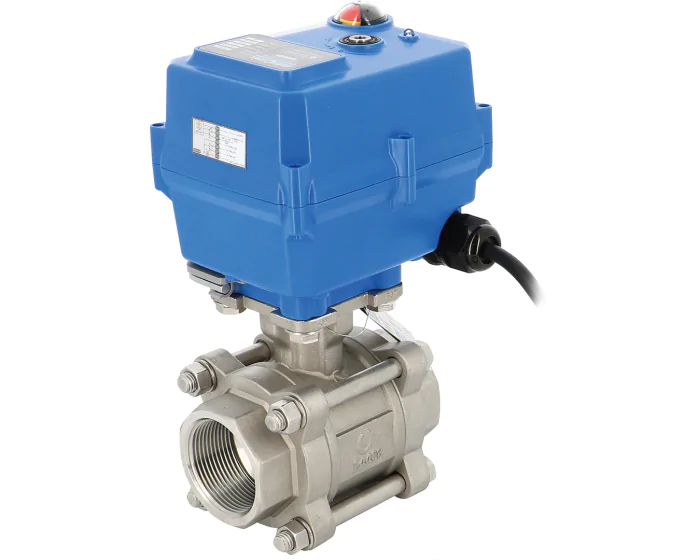

The 3-piece body 746 XS V-PORT is designed for fluid control. It has a 30° or 60° V-ball and a 4-20 mA electric actuator. Stainless steel body 1.4408, PTFE seats. PS : 64 bar - TS : -40 / +180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 10 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Protection index (IP) | IP 67 |
| Kv (m³/h) | 5.10 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 63 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | TCR-02T |
| Electric actuator series | TCR Series |
| Operating time (s) | 10.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 5.10 | 272642024150V3 | S1009840 |
€491.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 10.10 | 272642024150V6 | S1009841 |
€488.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 6.80 | 272643024150V3 | S1009842 |
€508.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 14.50 | 272643024150V6 | S1009843 |
€497.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 13.70 | 272644024150V3 | S1009844 |
€534.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24.50 | 272644024150V6 | S1009845 |
€541.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 25.30 | 272646024350V3 | S1009846 |
€806.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 47.90 | 272646024350V6 | S1009847 |
€818.93
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 38.40 | 272647024350V3 | S1009848 |
€877.14
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 81.40 | 272647024350V6 | S1009849 |
€908.90
(excl. btw)
|
add to cart |
