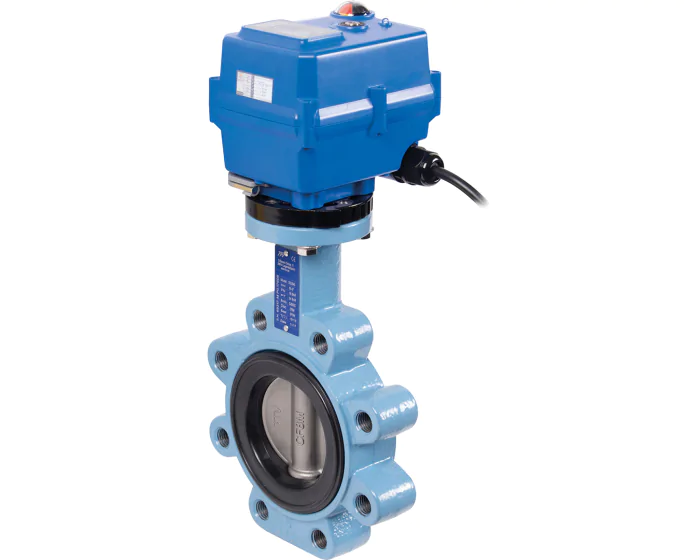

The TTV 1160 LUG butterfly valve has a ductile iron body, a ductile iron or stainless steel disc and an EPDM seat. It is actuated with a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 110 |
| TS min (°C) | -20 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 95-265 V AC/DC | 261303024310 | S1005122 |
€374.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 24 V AC/DC | 261303024311 | S1005123 |
€374.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 261304024310 | S1005124 |
€377.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 261304024311 | S1005125 |
€377.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 261305024310 | S1005126 |
€388.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 261305024311 | S1005127 |
€388.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 261306024310 | S1005128 |
€400.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 261306024311 | S1005129 |
€400.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 261307024310 | S1005130 |
€430.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 261307024311 | S1005131 |
€430.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 261308024610 | S1005132 |
€619.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 24 V AC/DC | 261308024611 | S1005133 |
€619.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' 95-265 V AC/DC | 261309024700 | S1005134 |
€955.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 261310024720 | S1005135 |
€1,243.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 261311024720 | S1005136 |
€1,497.09
(excl. btw)
|
add to cart |
