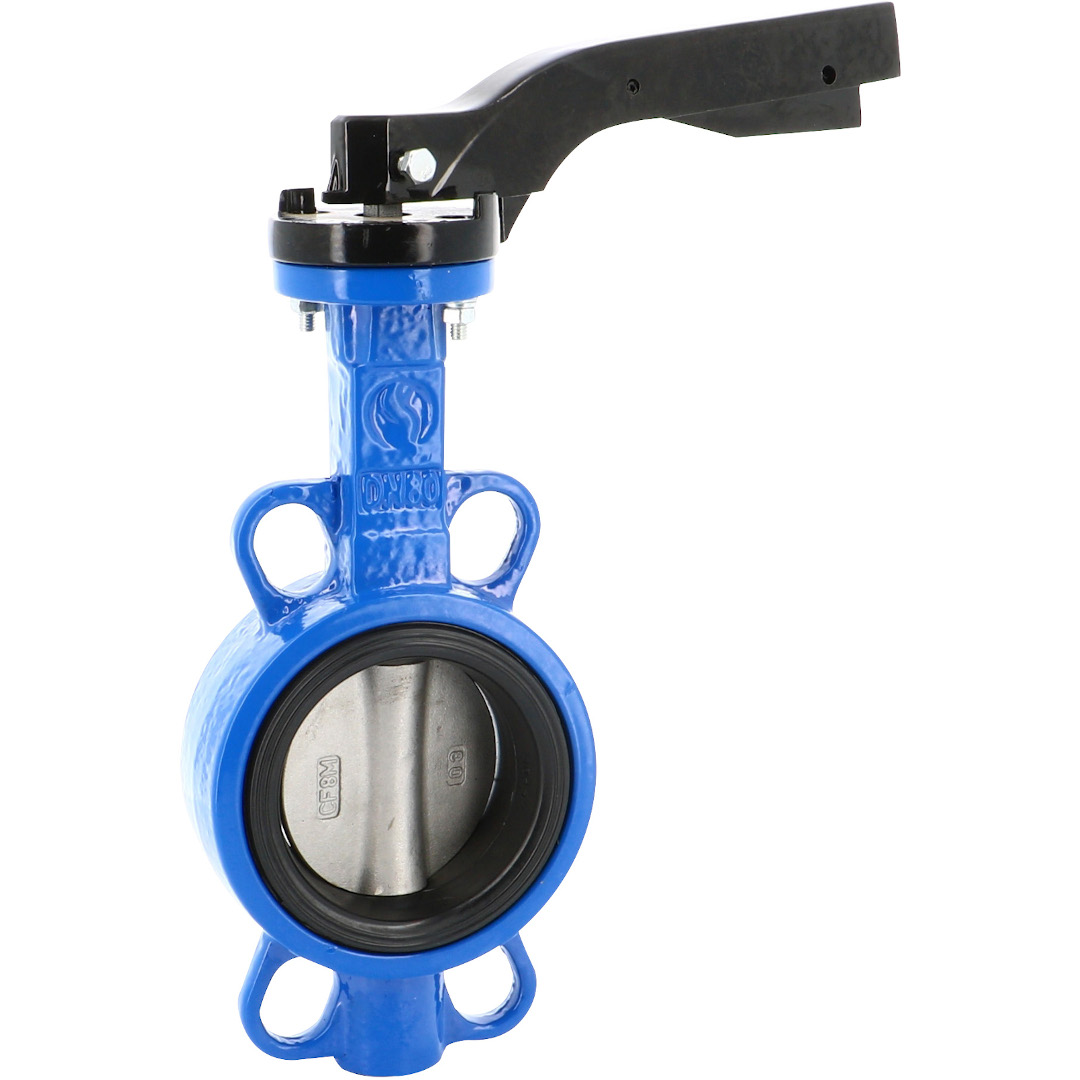

Wafer butterfly valve for potable water networks, featuring a cast iron body, stainless steel disc, and ACS-certified EPDM liner. Compatible with multiple flange standards and available with manual operation or ISO 5211 actuator mounting.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Type of seat | Vulcanized |
| Opening device | Handle |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Cast iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Through shaft | Yes |
| Warranty period | 5 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Cast iron Concentric DN40 - 1''1/2 | 1123040A | S1009744 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN50 - 2'' | 1123050A | S1009745 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN65 - 2''1/2 | 1123065A | S1009746 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN80 - 3'' | 1123080A | S1009747 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN100 - 4'' | 1123100A | S1009748 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN125 - 5'' | 1123125A | S1009749 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN150 - 6'' | 1123150A | S1009750 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN200 - 8'' | 1123200A | S1009751 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN250 - 10'' | 1123250A | S1009752 |
€0.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Cast iron Concentric DN300 - 12'' | 1123300A | S1009753 |
€0.00
(excl. btw)
|
add to cart |
