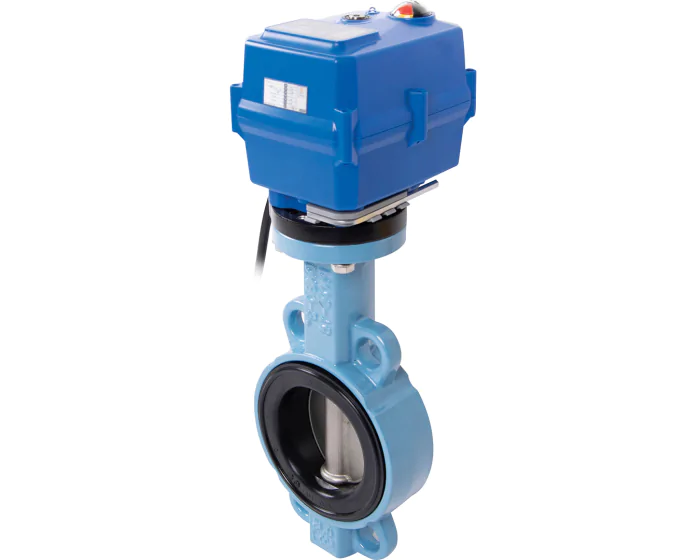

The TTV 1158 butterfly valve has a ductile iron body, a copper-aluminium disc and an NBR seat. It is actuated with a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Seat | NBR |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Cupro aluminium |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 32 - 40 95-265 V AC/DC | 260513024310 | S1005851 |
€434.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 24 V AC/DC | 260513024311 | S1005852 |
€434.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 260514024310 | S1005853 |
€445.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 260514024311 | S1005854 |
€445.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 260515024310 | S1005855 |
€471.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 260515024311 | S1005856 |
€471.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 260516024310 | S1005857 |
€495.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 260516024311 | S1005858 |
€495.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 260517024310 | S1005859 |
€541.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 260517024311 | S1005860 |
€541.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 260518024610 | S1005861 |
€740.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 24 V AC/DC | 260518024611 | S1005862 |
€740.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' 95-265 V AC/DC | 260519024700 | S1005863 |
€1,126.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 260520024720 | S1005864 |
€1,409.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 260521024720 | S1005865 |
€1,773.66
(excl. btw)
|
add to cart |
