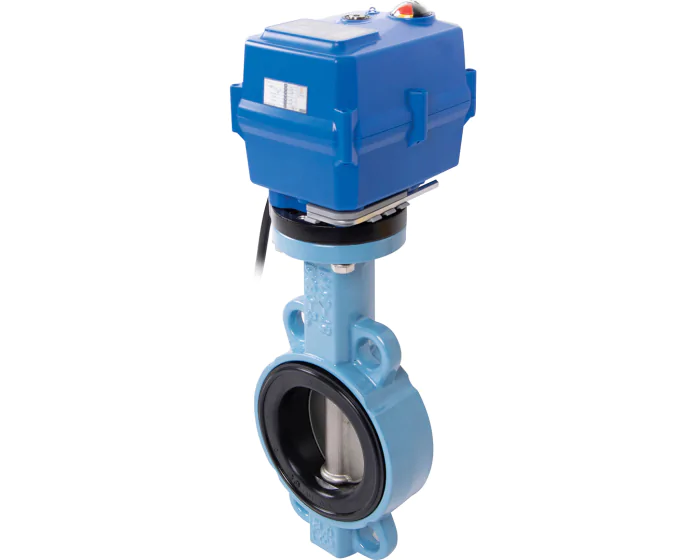

The TTV 1153 LT10 butterfly valve has a ductile iron body, a stainless steel disc and an EPDM seat. It is actuated with a TCR-N electric actuator. ACS approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Indoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 95-265 V AC/DC | 260363024310L10 | S1005369 |
€360.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 24 V AC/DC | 260363024311L10 | S1005370 |
€360.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 260364024310L10 | S1005371 |
€362.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 260364024311L10 | S1005372 |
€362.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 260365024310L10 | S1005373 |
€371.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 260365024311L10 | S1005374 |
€371.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 260366024310L10 | S1005375 |
€392.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 260366024311L10 | S1005376 |
€392.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 260367024310L10 | S1005377 |
€419.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 260367024311L10 | S1005378 |
€419.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 260370024700L10 | S1005379 |
€1,069.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 260371024720L10 | S1005380 |
€1,465.59
(excl. btw)
|
add to cart |
