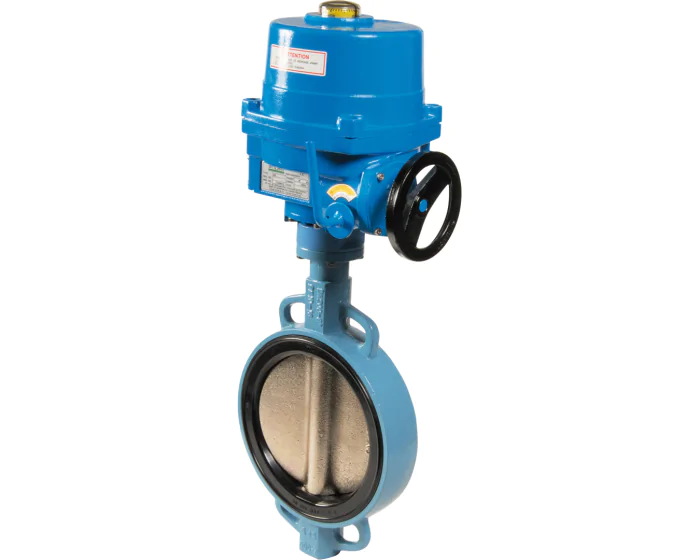

1153 LS LT6 large diameter disc valve. ACS certification. Designed with ductile iron body, stainless steel 1.4408 disc and EPDM seat. PS: 10 bar. Mounting between flanges PN10. NA 400V electric actuator. Delta P: 6 bar maximum.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 6 |
| Shaft/stem matérial | Stainless steel 420 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN400 - 16'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 154.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Power (W) | 180 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 200 |
| Electric actuator series | SA/NA series |
| Operating time (s) | 87.0 |
| Voltage | 3-400 V |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Ductile iron Concentric DN400 - 16'' 3-400 V | 260374023203L06 | S1006274 |
€2,471.66
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 3-400 V DN450 - 18'' | 260375023203L06 | S1006275 |
€4,052.26
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN500 - 20'' 3-400 V | 260376023213L06 | S1006276 |
€7,466.40
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN600 - 24'' 3-400 V | 260377023223L06 | S1006277 |
€7,648.37
(excl. btw)
|
add to cart |
