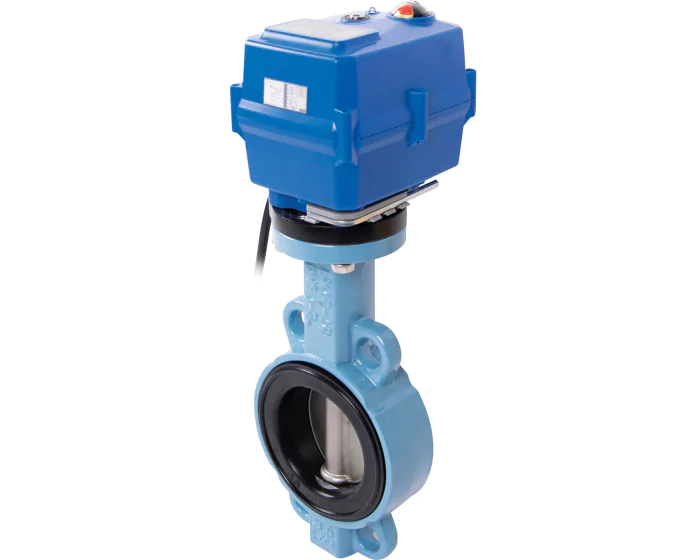

The TTV 1152 butterfly valve has a ductile iron body, a ductile iron or stainless steel disc and an NBR seat. It is actuated with a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Seat | NBR |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 32 - 40 95-265 V AC/DC | 260333024310 | S1003682 |
€366.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 24 V AC/DC | 260333024311 | S1003683 |
€366.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 260334024310 | S1003684 |
€366.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 260334024311 | S1003685 |
€366.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 260335024310 | S1003686 |
€383.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 260335024311 | S1003687 |
€383.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 260336024310 | S1003688 |
€388.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 260336024311 | S1003689 |
€388.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 260337024310 | S1003690 |
€410.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 260337024311 | S1003691 |
€410.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 260338024610 | S1003692 |
€595.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 24 V AC/DC | 260338024611 | S1003693 |
€595.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' 95-265 V AC/DC | 260339024700 | S1003694 |
€941.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 260340024720 | S1003695 |
€1,150.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 260341024720 | S1003696 |
€1,393.89
(excl. btw)
|
add to cart |
