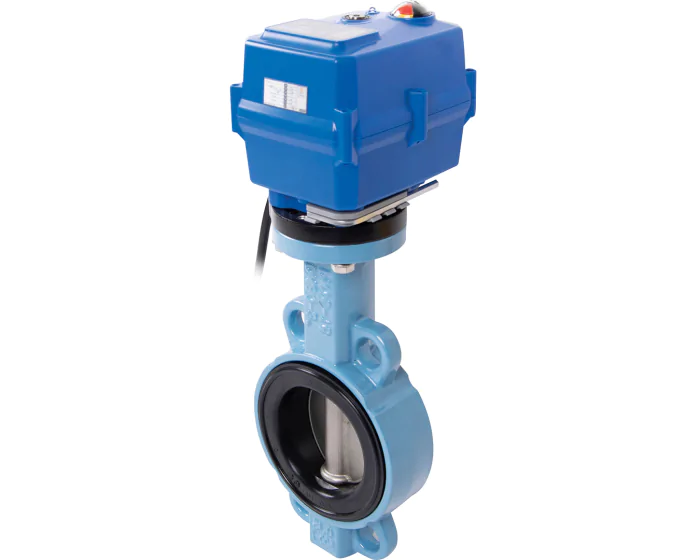

The TTV 1151 butterfly valve has a ductile iron body, a stainless steel disc and an NBR seat. It is actuated with a TCR-N electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | 32 - 40 |
| Face to Face (mm) | 33.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Seat | NBR |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-05N |
| Electric actuator series | TCR Series |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 32 - 40 95-265 V AC/DC | 260440024310 | S1005736 |
€382.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 24 V AC/DC | 260440024311 | S1005737 |
€382.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 95-265 V AC/DC | 260441024310 | S1005738 |
€386.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 260441024311 | S1005739 |
€386.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 95-265 V AC/DC | 260442024310 | S1005740 |
€402.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 260442024311 | S1005741 |
€402.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 95-265 V AC/DC | 260443024310 | S1005742 |
€424.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 24 V AC/DC | 260443024311 | S1005743 |
€424.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 95-265 V AC/DC | 260444024310 | S1005744 |
€452.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 260444024311 | S1005745 |
€452.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 95-265 V AC/DC | 260445024610 | S1005746 |
€636.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 24 V AC/DC | 260445024611 | S1005747 |
€636.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' 95-265 V AC/DC | 260446024700 | S1005748 |
€989.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' 24 V AC/DC | 260446024701 | S1005749 |
€989.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' 95-265 V AC/DC | 260447024720 | S1005750 |
€1,269.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' 95-265 V AC/DC | 260448024720 | S1005751 |
€1,536.11
(excl. btw)
|
add to cart |
