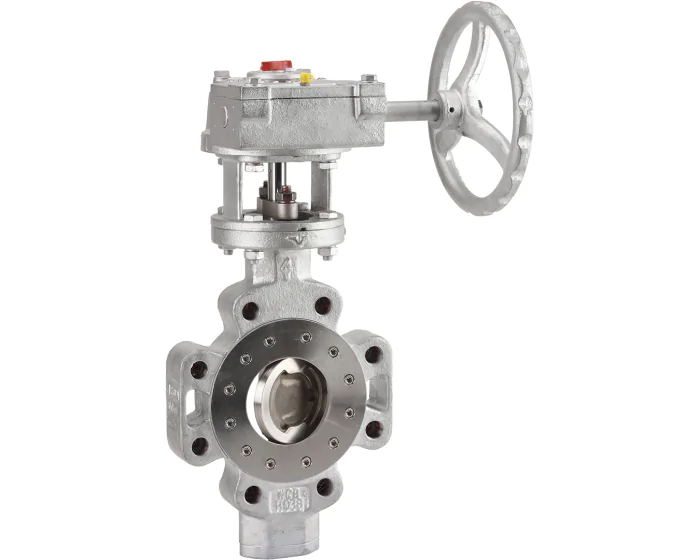

Discover the 1118 series butterfly valve, triple offset, PN40 threaded lugs, carbon steel body, 100% watertight model, fire safety, suitable for actuation, stainless steel butterfly.
| Specification | Value |
|---|---|
| DN inches NPS | 4'' |
| Option certificate 3.1 | Yes |
| DN metric | 102/114 |
| Construction standard | API 609 |
| CE risk category | III Module H |
| NACE MR0175 | No |
| Fire safe standard | ISO 10497:2010 |
| SIL | SIL 1 |
| Paint coating thickness (µm) | 30.00 |
| EN face-to-face standard | EN 558 Series 109 |
| ASME face-to-face standard | API 609 table 2 Class 300 |
| Tightness test standard | error to be processed |
| Notch plate | No |
| Steam | Yes |
| Opening device | Bare shaft |
| Fugitive emissions standard | ISO 15848-1 Class C |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel A479 XM-19 |
| Lockable | No |
| Square, star (mm) | Ø17.9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 326 |
| DN | DN100 - 4'' |
| Face to Face (mm) | 54.0 |
| Fluid | Steam |
| 3D indicator | No |
| Kv (m³/h) | 169.5 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F07/F10 |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Between flanges PN40 |
| Seats | Stainless steel A479 WM-19 + Graphite |
| TS max (°C) | 349 |
| TS min (°C) | -39 |
| Butterfly valve design | Triple offset |
| Wafer/lug | Lug |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Fire safe | Yes |
| NF | No |
| Fugitive emissions | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN100 - 4'' Bare shaft | 1118100 | S1007242 |
€3,380.91
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN100 - 4'' Gears | 1118105 | S1007243 |
€3,684.39
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN150 - 6'' Bare shaft | 1118150 | S1007244 |
€4,894.80
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN150 - 6'' Gears | 1118155 | S1007245 |
€5,322.94
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN200 - 8'' Bare shaft | 1118200 | S1007246 |
€6,289.23
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN200 - 8'' Gears | 1118205 | S1007247 |
€6,611.06
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN250 - 10'' Bare shaft | 1118250 | S1007248 |
€8,361.40
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN250 - 10'' Gears | 1118255 | S1007249 |
€8,959.97
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN300 - 12'' Bare shaft | 1118300 | S1007250 |
€11,482.64
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN300 - 12'' Gears | 1118305 | S1007251 |
€12,303.39
(excl. btw)
|
add to cart |
