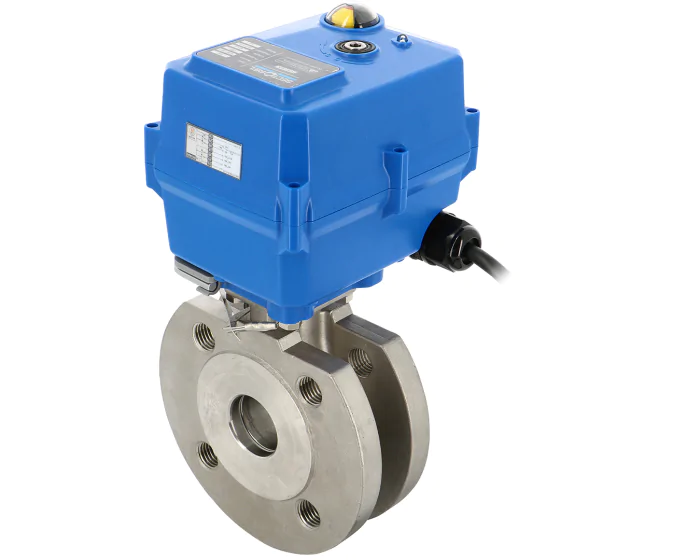

The wafer 771 XS ball valve has a CF8M (1.4408) stainless steel body and ball, PTFE seats. It is actuated with a TCR-N electric actuator. PS: 16 bar, TS: 180°C. Installation between flanges PN16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02N |
| Electric actuator series | TCR Series |
| Seats | PTFE-Glass |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Ball valve design | Wafer |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN15 - 1/2'' 95-265 V AC/DC | 272902024110 | S1003978 |
€403.10
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN15 - 1/2'' 24 V AC/DC | 272902024111 | S1003979 |
€403.10
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN20 - 3/4'' 95-265 V AC/DC | 272903024110 | S1003980 |
€409.93
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN20 - 3/4'' 24 V AC/DC | 272903024111 | S1003981 |
€409.93
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN25 - 1'' 95-265 V AC/DC | 272904024310 | S1003982 |
€442.34
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN25 - 1'' 24 V AC/DC | 272904024311 | S1003983 |
€442.34
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN32 - 1''1/4 95-265 V AC/DC | 272905024310 | S1003984 |
€477.36
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN32 - 1''1/4 24 V AC/DC | 272905024311 | S1003985 |
€477.36
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN40 - 1''1/2 95-265 V AC/DC | 272906024310 | S1003986 |
€551.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN40 - 1''1/2 24 V AC/DC | 272906024311 | S1003987 |
€551.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN50 - 2'' 95-265 V AC/DC | 272907024610 | S1003988 |
€747.86
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN50 - 2'' 24 V AC/DC | 272907024611 | S1003989 |
€747.86
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN65 - 2''1/2 95-265 V AC/DC | 272908024610 | S1003990 |
€934.36
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN65 - 2''1/2 24 V AC/DC | 272908024611 | S1003991 |
€934.36
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer DN100 - 4'' 95-265 V AC/DC | 272910024700 | S1003992 |
€1,670.76
(excl. btw)
|
add to cart |
