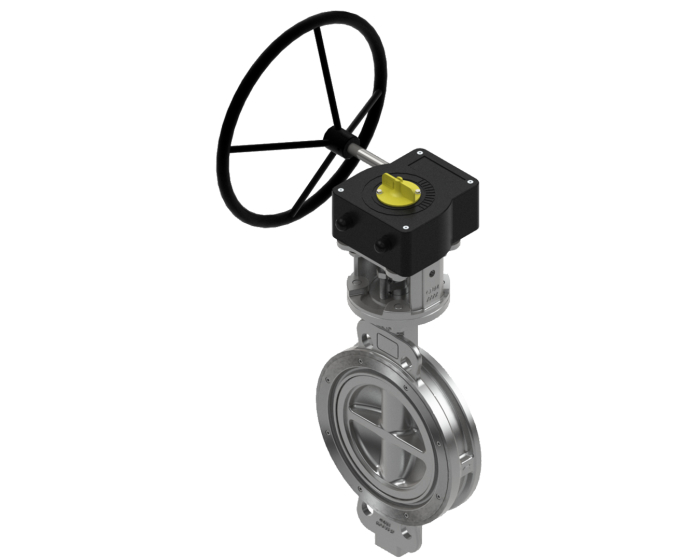

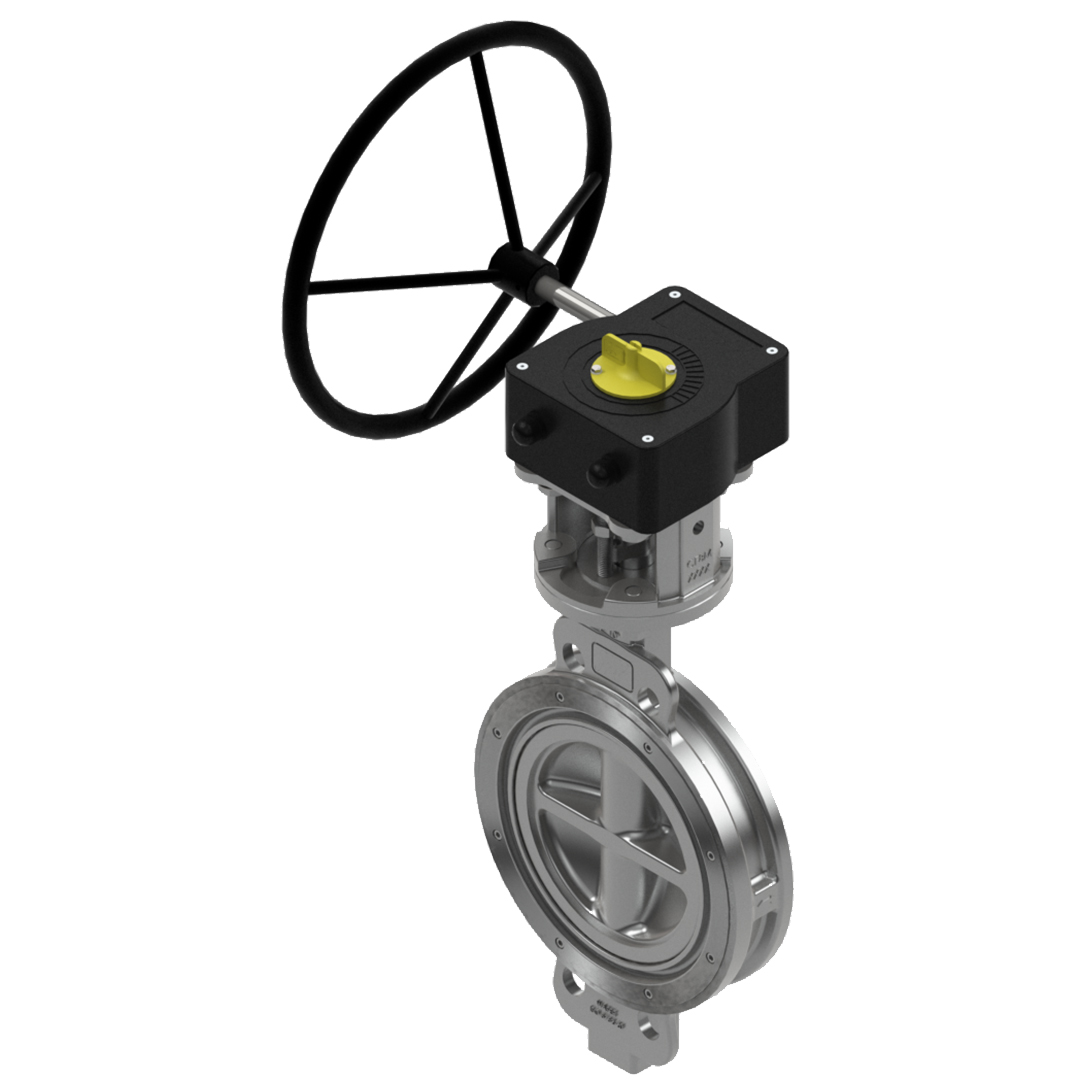

Stainless steel double offset butterfly valve 1119 Wafer DN50
€495.16
(excl. btw)
The 1119 series double offset butterfly valve is a wafer-type stainless steel valve with PTFE seat. It is dedicated to applications in the chemical, fine chemical, pharmaceutical, food, cosmetic and industrial refrigeration industries.
Specification
Value
DN inches NPS
2''
SIL
SIL 1
Opening device
Lever
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Carbon steel 1.0737
Square, star (mm)
Square 9 mm
ATEX compatible
Yes
DN
DN50 - 2''
Face to Face (mm)
43.0
Sealing
PTFE gland packing
Fluid
Acids
Body material
Stainless steel CF8M (1.4408)
Disc material
Stainless steel ASTM A351 CF8M
ISO pad 5211
F05/F07
Packing gland
Yes
PS (bar)
30
Connections
Between flanges PN10/16/25/40 #150
Seats
PTFE
TS max (°C)
220
TS min (°C)
-50
Butterfly valve design
Double offset
Wafer/lug
Wafer
Through shaft
Yes
Warranty period
2 years
CE
Yes
Fugitive emissions
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6951
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN50 - 2''
1119050
S1007137
€495.16
(excl. btw)
add to cart
6952
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2
1119065
S1007138
€614.00
(excl. btw)
add to cart
6953
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN80 - 3''
1119080
S1007139
€707.36
(excl. btw)
add to cart
6954
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN100 - 4''
1119100
S1007140
€848.83
(excl. btw)
add to cart
6955
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN125 - 5''
1119125
S1007141
€1,075.19
(excl. btw)
add to cart
6956
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN150 - 6''
1119150
S1007142
€1,188.36
(excl. btw)
add to cart
6957
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN200 - 8''
1119200
S1007143
€1,924.01
(excl. btw)
add to cart
6958
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN250 - 10''
1119250
S1007144
€2,716.26
(excl. btw)
add to cart
6959
Between flanges PN10/16/25/40 #150 Stainless steel CF8M (1.4408) Double offset DN300 - 12''
1119300
S1007145
€3,678.27
(excl. btw)
add to cart
