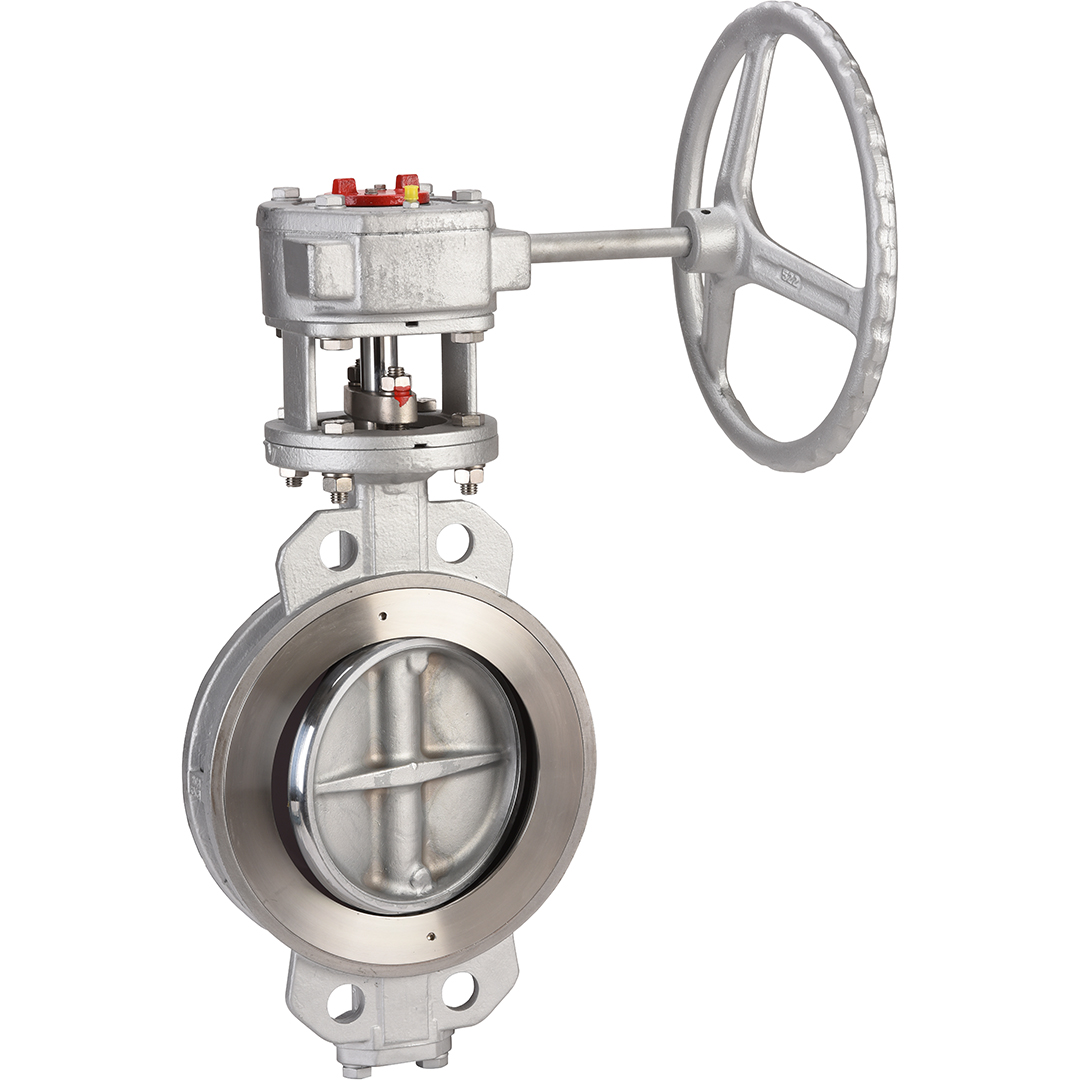

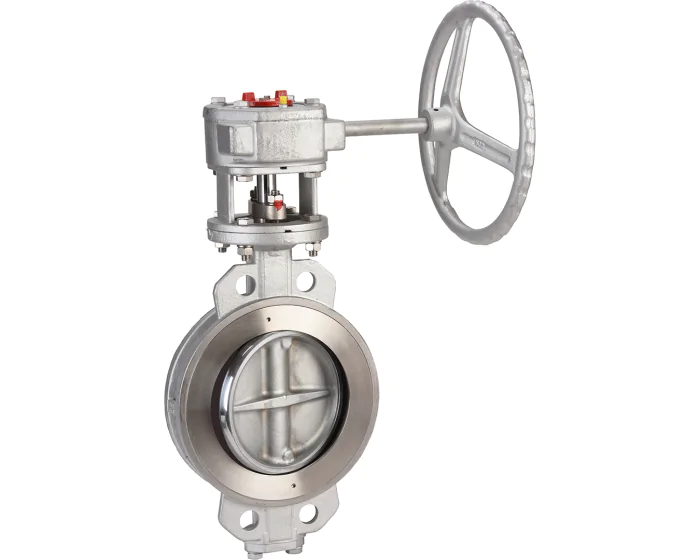

The 1116 series double offset butterfly valve is a wafer-type valve with a stainless steel body and disc, and 15% graphite-filled PTFE seat. It is between flanges ANSI 150, fire safe, for district heating, petrochemical industries, etc.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| DN metric | 50/60 |
| Construction standard | API 609 |
| CE risk category | III Module H |
| Fire safe standard | ISO 10497:2010 |
| SIL | SIL 1 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | ISO 5208 Rate A |
| Notch plate | Yes |
| Steam | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel 17 4-PH (630) |
| Lockable | Yes |
| Square, star (mm) | Square 11 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 49 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 138.4 |
| Body material | Stainless steel CF8M (1.4408) |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Between flanges #150 PN20 |
| Seats | PTFE-Graphite |
| TS max (°C) | 210 |
| TS min (°C) | -50 |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Ductile iron |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' | 1116050 | S1007223 |
€550.69
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 | 1116065 | S1007224 |
€613.33
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' | 1116080 | S1007225 |
€826.70
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' | 1116100 | S1007226 |
€1,014.39
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' | 1116125 | S1007227 |
€1,226.20
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' | 1116150 | S1007228 |
€1,396.27
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' | 1116200 | S1007229 |
€2,318.91
(excl. btw)
|
add to cart |
