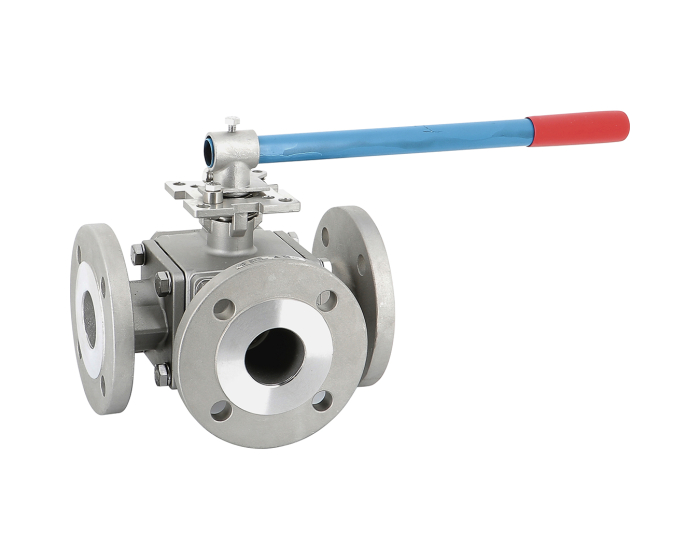

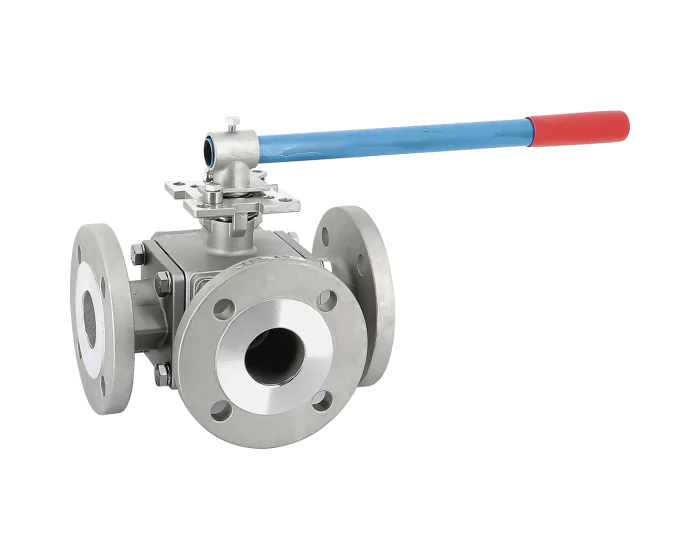

The 786 series ball valve is a 3-way flanged PN16 model, made of stainless steel, T-shaped port, with injectable shaft, ISO pad, and ATEX compatibility for chemicals, petrochemicals, heating, water, and compressed air.
| Specification | Value |
|---|---|
| DN inches NPS | 1'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 11 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 16 |
| DN | DN25 - 1'' |
| Face to Face (mm) | 2045.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 37.0 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| 3-way type | T |
| Ball valve design | 3-way |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN25 - 1'' | 786025 | S1008088 |
€457.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN32 - 1''1/4 | 786032 | S1008089 |
€631.93
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN40 - 1''1/2 | 786040 | S1008090 |
€837.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN50 - 2'' | 786050 | S1008091 |
€1,133.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN65 - 2''1/2 | 786065 | S1008092 |
€1,548.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN80 - 3'' | 786080 | S1008093 |
€2,086.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN100 - 4'' | 786100 | S1008094 |
€4,008.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN125 - 5'' | 786125 | S1008095 |
€6,842.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full 3-way DN150 - 6'' | 786150 | S1008096 |
€8,241.06
(excl. btw)
|
add to cart |
