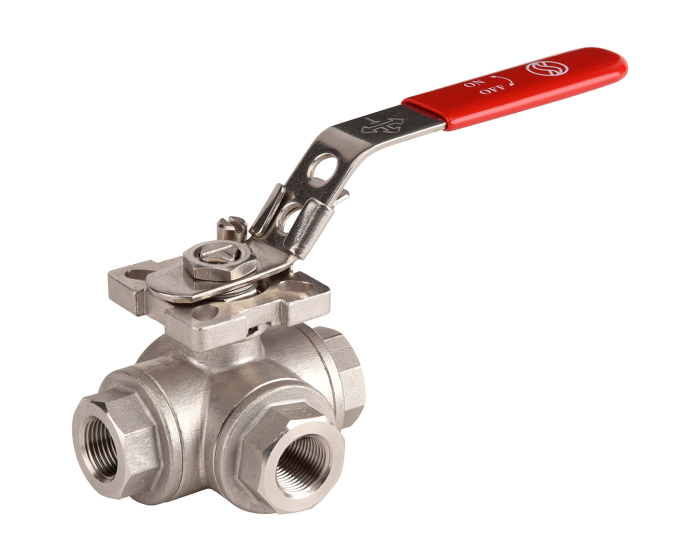

Stainless steel ball valve 780 3 way L-port
€35.27(excl. btw)
Stainless-steel 3-way threaded ball valves Series 780 and 781 with tight sealing and robust features for versatile industrial use. Choose L or T port for mixing, diverting, or distributing flows. Sizes from 1/4'' to 2'', max pressure 40 bar
In stock Subject prior to sales
Categories :
Kogelkranen
References 780-781: stainless-steel three-way threaded ball valves Our references 780 and 781 are stainless-steel three-way threaded ball valves. Three-way ball valves are mainly used to mix or distribute flows between three pipes. The valves can be mounted with a L-shaped ball or T-shaped ball. Depending on the port and position of the ball, three-way ball valves have various functions: Divert a fluid by closing an outlet pipe to redirect it to another pipe, closed in the previous position Mix liquids providing from two pipes into a third one Distribute a fluid from a single pipe into two outlet pipes Our references 780 (L port) and 781 (T port) are made up of CF8M stainless-steel body and ball, and of a PTFE filled with 15% glass fibre seat. They have threaded BSP ends and come in multiple sizes (1/4'' to 2''). These reduced-bore ball valves ensure tightness on three ways as they have four seats. They are fitted with a number of specific technical items: Double antistatic device (small balls between stem and body and between stem and ball) Locking device Anti-blowout stem ISO 5211 mounting pad Our stainless-steel three-way threaded ball valves allow a maximum pressure of 40 bar and temperatures ranging from -25 °C up to +180 °C.
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
CE risk category
II Module A2
Thread standard
ISO 7-1 Rp
Tightness test standard
API 598
Stem sealing material
PTFE gland packing + FKM O-ring
Antistatic device
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 316
Lockable
Yes
Square, star (mm)
Square 9 mm
ATEX compatible
Yes
Torque (Nm)
8
DN
DN8 - 1/4''
Face to Face (mm)
1050.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
2.3
Body material
Stainless steel CF8M (1.4408)
Number of ways
3
Bore
Reduced
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
40
Connections
BSP FF
Seats
PTFE-Glass
Ball material
Stainless steel AISI 316
TS max (°C)
180
TS min (°C)
-25
3-way type
L
Ball valve design
3-way
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Stainless steel AISI 304
Handle type
Red lever
If you have any questions about this product, please feel free to contact us.
