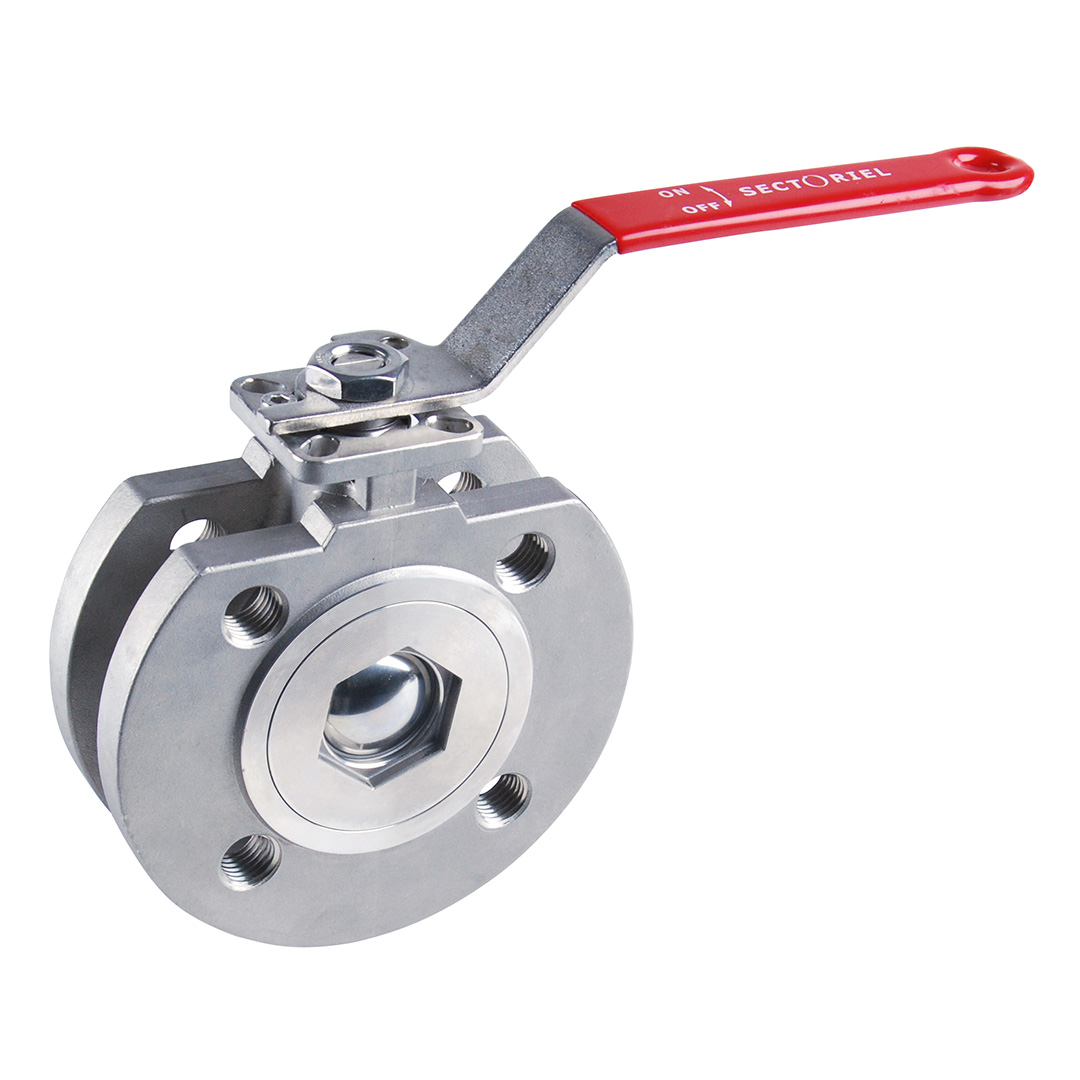

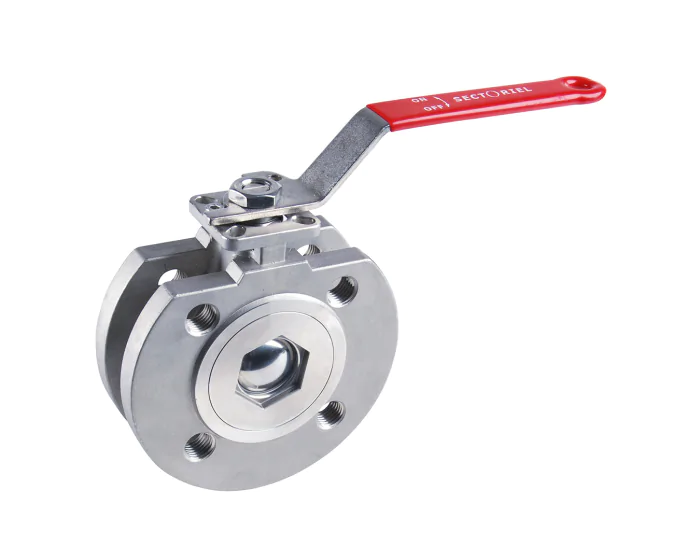

Stainless steel ball valve 771XS wafer RF PN16 + ISO pad DN15
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 42.0 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 16 |
| Connections | Between flanges PN16 |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Stainless steel CF8M (1.4408) DN15 - 1/2'' | 272902 | S1008009 |
€102.90
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN20 - 3/4'' | 272903 | S1008010 |
€114.24
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN25 - 1'' | 272904 | S1008011 |
€162.11
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 272905 | S1008012 |
€201.56
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 272906 | S1008013 |
€280.06
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN50 - 2'' | 272907 | S1008014 |
€316.11
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN65 - 2''1/2 | 272908 | S1008015 |
€520.86
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN80 - 3'' | 272909 | S1008016 |
€647.70
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) DN100 - 4'' | 272910 | S1008017 |
€928.20
(excl. btw)
|
add to cart |
