Name: Stainless steel ball valve 771 wafer RF PN16 + ISO pad DN15
SKU: 7687
Price: 33.785714285714 EUR
Availability: InStock

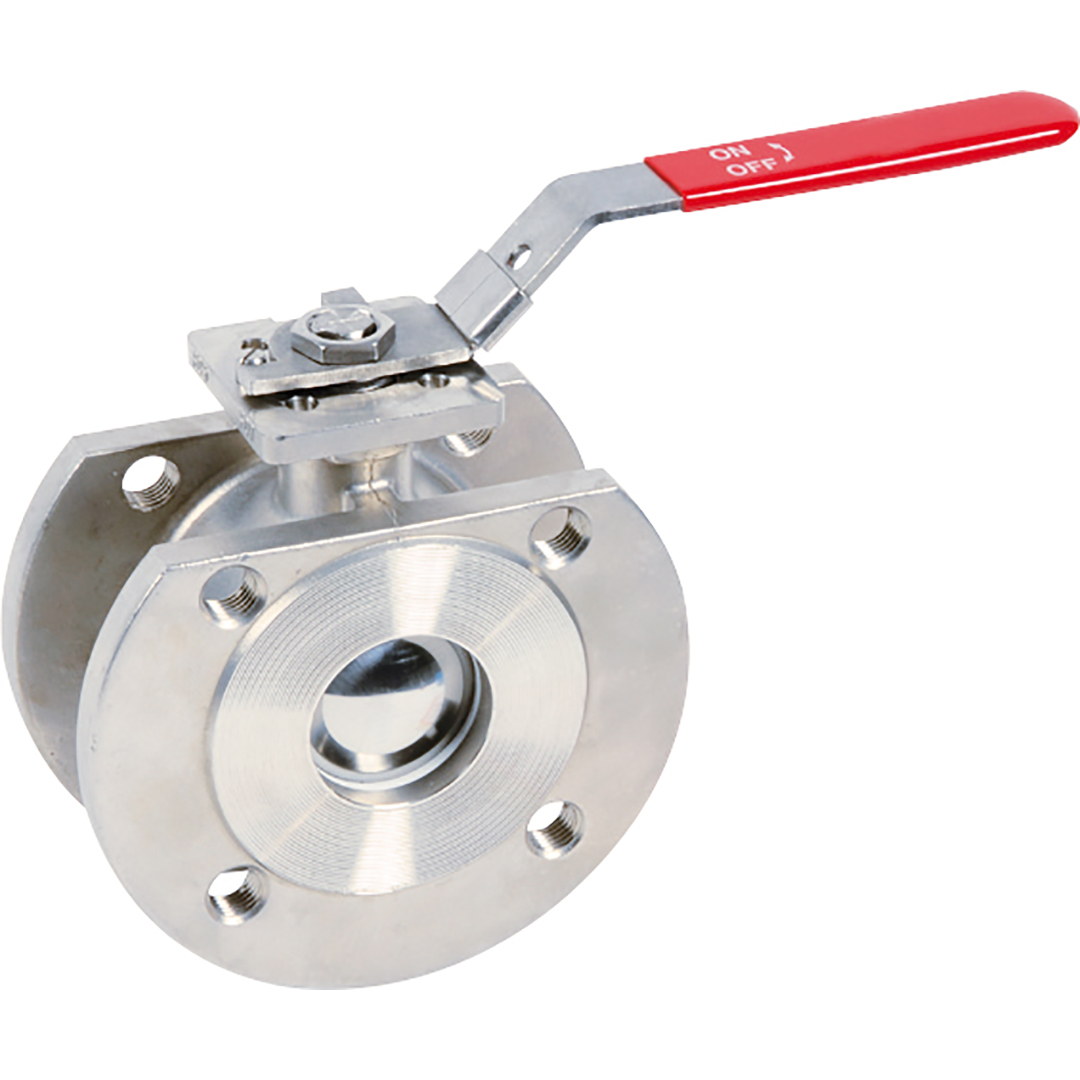

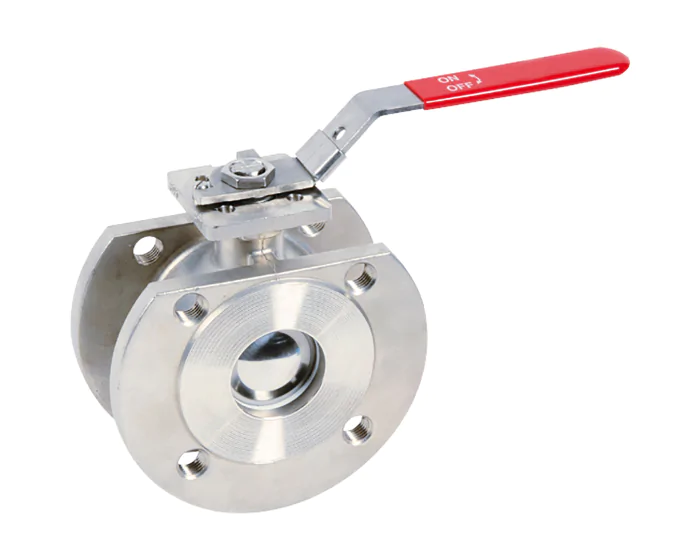

Stainless steel ball valve 771 wafer RF PN16 + ISO pad DN15

Stainless steel ball valve 771 wafer RF PN16 + ISO pad DN15

€33.79 (excl. btw)

Discover the Sferaco 771 series ball valve, compact model between flanges PN16, in stainless steel, full bore with PTFE packing gland, FKM O-ring, ISO pad for chemical, petrochemical, hydraulic and air industries.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Reference 771: wafer type ball valve This wafer type ball valve is made up of stainless-steel body and ball, while the seat is in 15% glass fiber-filled PTFE (RTFE), for better creep strength and deformation resistance. It comes in sizes ranging from DN15 to DN150, and is fitted with a locking device for diameters DN25 to DN100. This wafer type ball valve has threaded holes and RF PN16 flanged ends. Our reference 771 also offers a lot of other specific features: It is a full-bore valve It has an anti-blowout stem It is equipped with an ISO 5211 mounting pad Its body is hollow It allows temperatures ranging from -20°C to +180°C The maximum operating pressure is 16 bar This wafer type ball valve main advantages are its compact design and lighter weight. It is most often used in the industrial field, in the chemical and petrochemical industries for example, but also in the pharmaceutical sector, or in hydraulic installations and compressed air systems.

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
Construction standard	EN 12516
CE risk category	II Module D1
EN face-to-face standard	EN 558 Series 100
Face to face standard	EN 558 Series 100
Tightness test standard	EN 12266-1 Rate A
Stem sealing material	PTFE gland packing + FKM O-ring
Opening device	Handle
Application	Industry
Shaft/stem matérial	Stainless steel AISI 304
Square, star (mm)	Square 9 mm
Torque (Nm)	7
DN	DN15 - 1/2''
Face to Face (mm)	340.0
Fluid	Hydrocarbons. gas
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
ISO pad 5211	Yes
Packing gland	Yes
PS (bar)	16
Connections	Flanged PN10/16
Seats	PTFE-Glass
Ball material	Stainless steel ASTM A351 CF8M
TS max (°C)	180
TS min (°C)	-20
Ball valve design	Wafer
Warranty period	2 years
CE	Yes
Handle material	Stainless steel AISI 304
Handle type	Red lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7688	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN15 - 1/2''	771015	S1007791	€33.79 (excl. btw)	add to cart
7689	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN20 - 3/4''	771020	S1007792	€44.91 (excl. btw)	add to cart
7690	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN25 - 1''	771025	S1007793	€58.17 (excl. btw)	add to cart
7691	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN32 - 1''1/4	771032	S1007794	€94.84 (excl. btw)	add to cart
7692	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN40 - 1''1/2	771040	S1007795	€127.29 (excl. btw)	add to cart
7693	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN50 - 2''	771050	S1007796	€168.86 (excl. btw)	add to cart
7694	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN65 - 2''1/2	771065	S1007797	€281.76 (excl. btw)	add to cart
7695	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN80 - 3''	771080	S1007798	€379.67 (excl. btw)	add to cart
7696	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN100 - 4''	771100	S1007799	€564.06 (excl. btw)	add to cart
7697	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN125 - 5''	771125	S1007800	€1,634.44 (excl. btw)	add to cart
7698	Flanged PN10/16 Stainless steel CF8M (1.4408) Full Wafer DN150 - 6''	771150	S1007801	€2,124.36 (excl. btw)	add to cart
