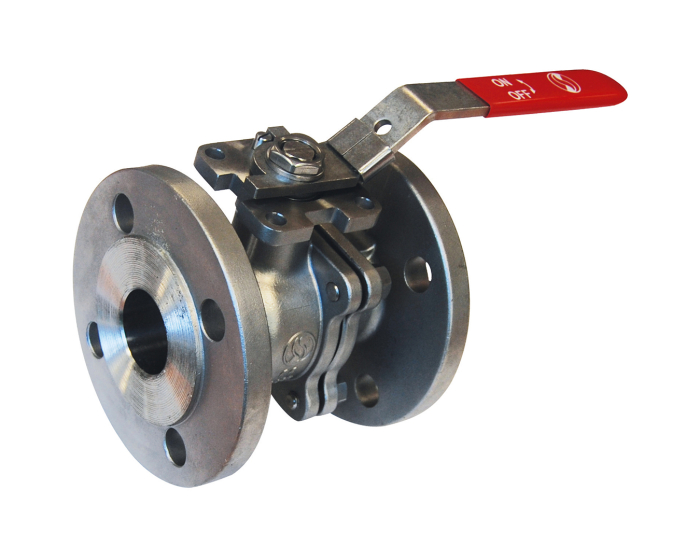

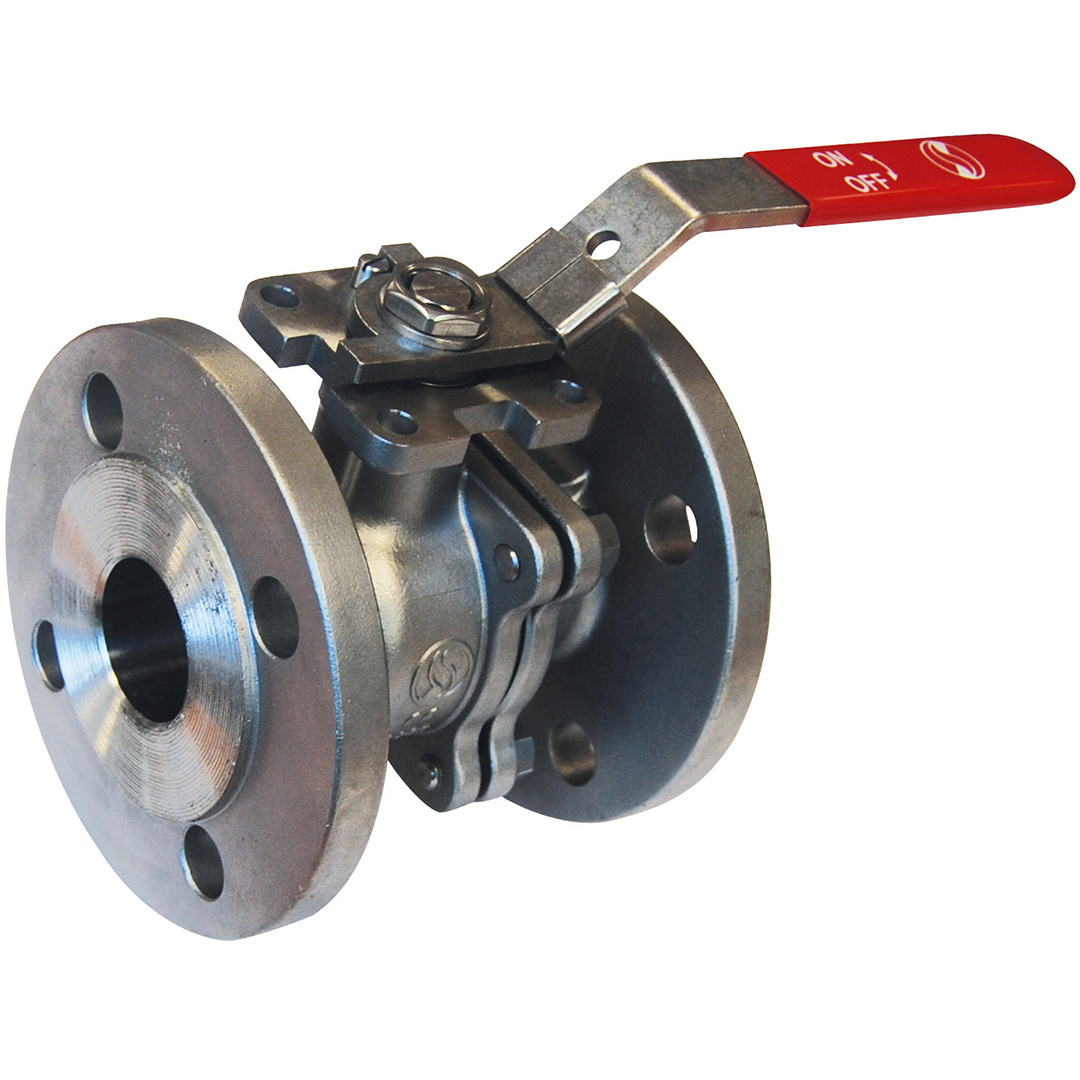

Stainless steel ball valve 765 2 piece body RF PN16 DN15
€53.77
(excl. btw)
Stainless steel ball valve 765 2 piece body RF PN16 DN50
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | II Module D1 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Face to face standard | error to be processed |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 6 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 1545.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | F04 |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | Split body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 765015 | S1006657 |
€53.77
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 765020 | S1006658 |
€70.31
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 765025 | S1006659 |
€87.91
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 765032 | S1006660 |
€128.39
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 765040 | S1006661 |
€153.30
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 765050 | S1006662 |
€213.19
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 765065 | S1006663 |
€341.73
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 765080 | S1006664 |
€441.70
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 765100 | S1006665 |
€610.91
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 765125 | S1006666 |
€1,190.36
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 765150 | S1006667 |
€1,552.39
(excl. btw)
|
add to cart |
