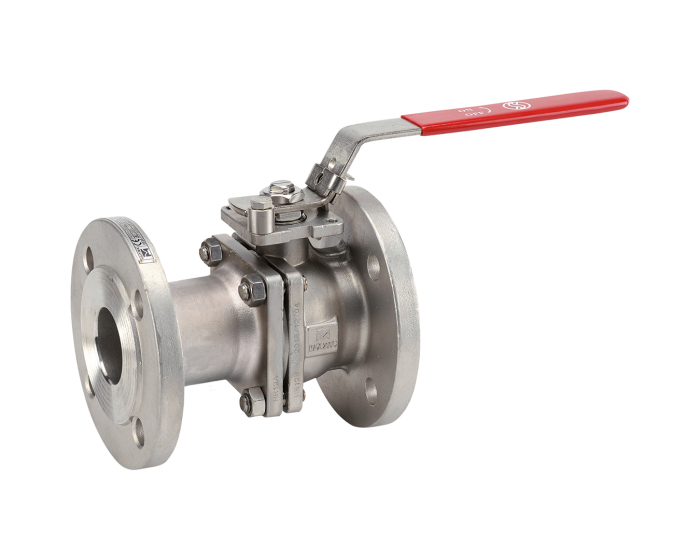

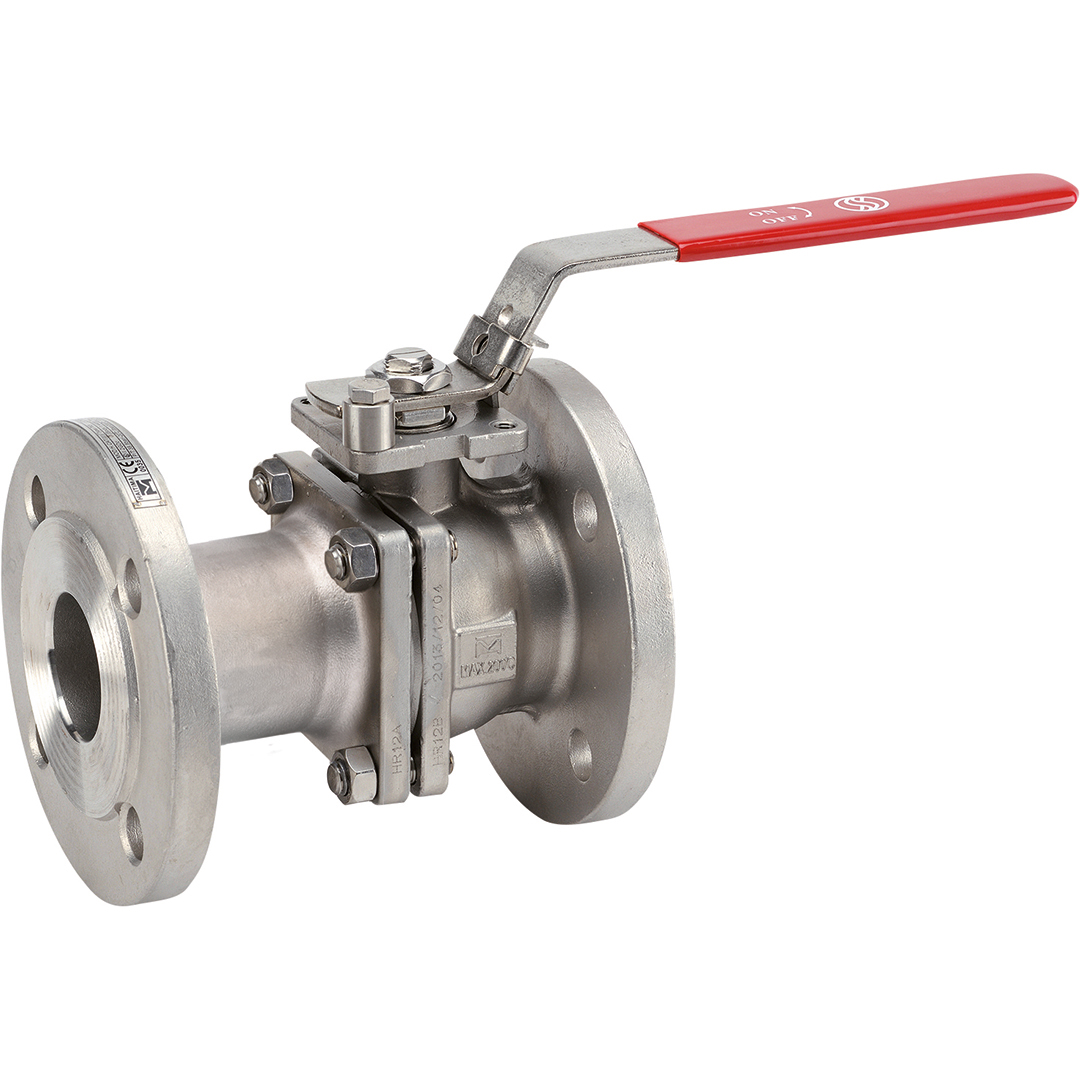

Discover the Sferaco 763L series ball valve, 2-piece body model of the performance range in stainless steel, flanged PN16/40, with long DIN, PTFE seat, ATEX zone compatible, actuation for industries, heating, water, air and chemical
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | III Module H |
| Fire safe standard | API 607 V6 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202 F1 |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 8 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 31 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 763L015 | S1006699 |
€131.60
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 763L020 | S1006700 |
€163.00
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 763L025 | S1006701 |
€212.31
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 763L032 | S1006702 |
€282.97
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 763L040 | S1006703 |
€358.83
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 763L050 | S1006704 |
€467.01
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 763L065 | S1006705 |
€759.67
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 763L080 | S1006706 |
€911.20
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 763L100 | S1006707 |
€1,246.84
(excl. btw)
|
add to cart |
