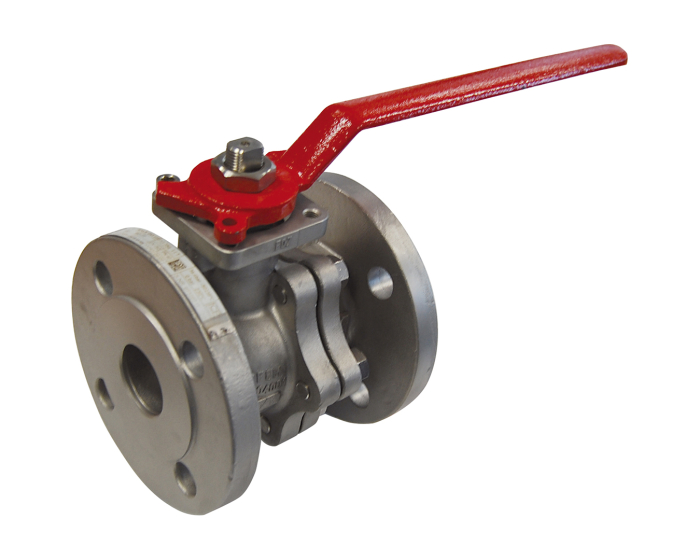

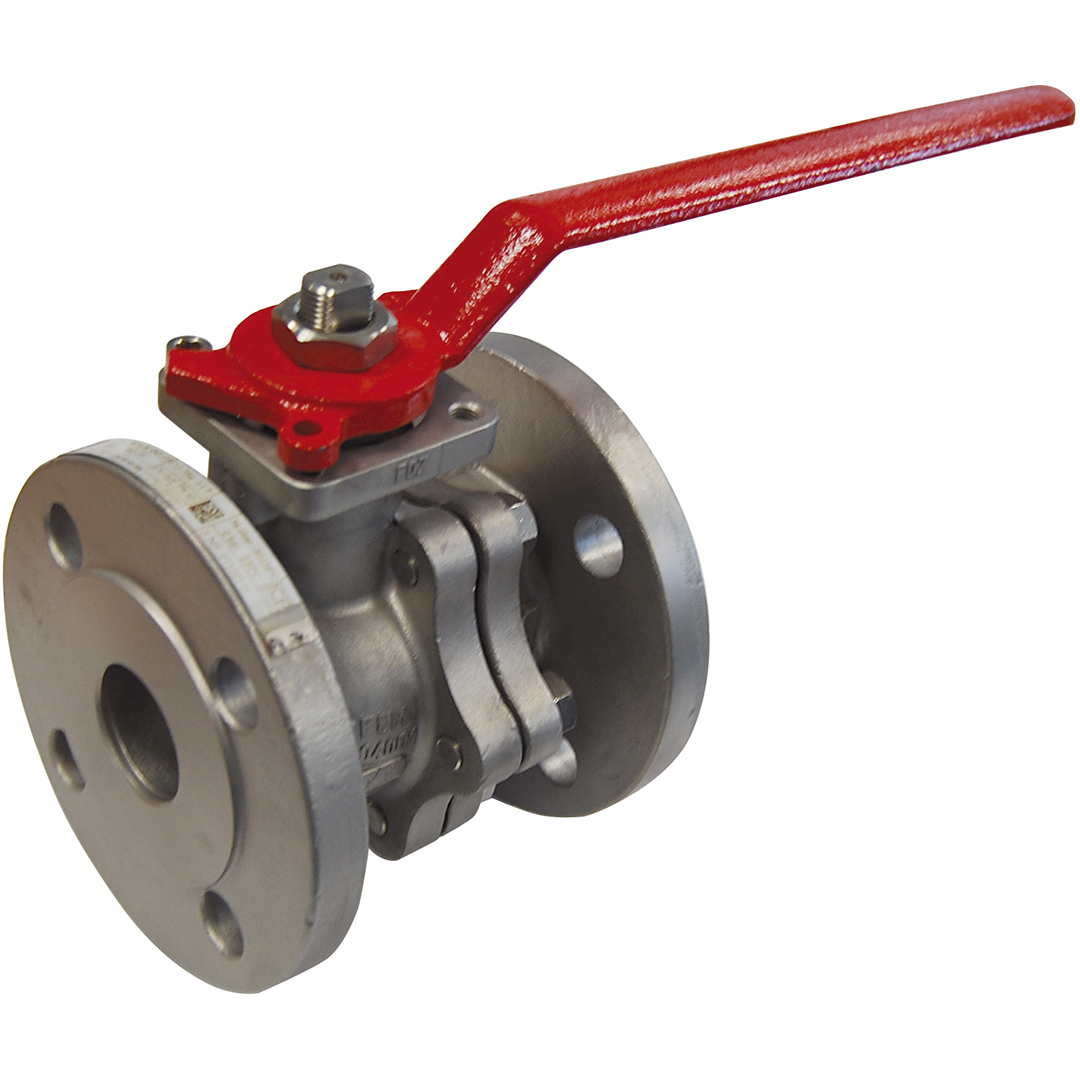

Stainless steel ball valve 753 2 piece body RF PN16 DN15
€129.16
(excl. btw)
The 753 series ball valve is a split-body model with PN40/16 flanges, made of stainless steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292
CE risk category
III Module H
Fire safe standard
ISO 10497:2004
EN face-to-face standard
EN 558 Series 27
DIN face-to-face standard
DIN 3202 F4. DIN 3357-2 ff
Brand
ICP VALVES
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class CH
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Lockable
Yes
Square, star (mm)
MEP M10x7
ATEX compatible
Yes
Torque (Nm)
8
DN
DN15 - 1/2''
Face to Face (mm)
1545.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
20.0
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
40
Connections
Flanged PN10/40
Seats
TFM 1600
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
230
TS min (°C)
-50
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6540
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2''
753015
S1006762
€129.16
(excl. btw)
add to cart
6541
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4''
753020
S1006763
€153.31
(excl. btw)
add to cart
6542
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN25 - 1''
753025
S1006764
€200.56
(excl. btw)
add to cart
6543
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4
753032
S1006765
€246.76
(excl. btw)
add to cart
6544
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2
753040
S1006766
€344.41
(excl. btw)
add to cart
6545
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN50 - 2''
753050
S1006767
€437.87
(excl. btw)
add to cart
6546
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2
753065
S1006768
€509.29
(excl. btw)
add to cart
6547
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN80 - 3''
753080
S1006769
€684.61
(excl. btw)
add to cart
6548
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN100 - 4''
753100
S1006770
€981.80
(excl. btw)
add to cart
6549
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN125 - 5''
753125
S1006771
€1,764.09
(excl. btw)
add to cart
6550
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN150 - 6''
753150
S1006772
€2,248.16
(excl. btw)
add to cart
6551
Flanged PN10/40 Stainless steel CF8M (1.4408) Full Split body DN200 - 8''
753200
S1006773
€3,983.89
(excl. btw)
add to cart
