Name: Stainless steel ball valve 747-8-9XS 3-piece body BSP BW SW
SKU: 8301
Price: 58.985714285714 EUR
Availability: InStock

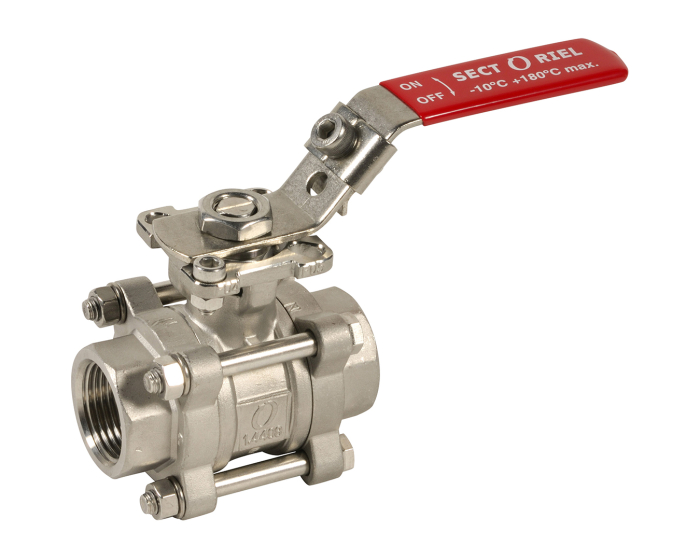

Stainless steel ball valve 747-8-9XS 3-piece body BSP BW SW

€58.99 (excl. btw)

The 747-8-9XS stainless steel 3-piece ball valve offers BSP, BW, or SW ends, CF8M body, PTFE/SS seats, and reliability in steam service up to 15 bar at 200°C, ensuring durability and secure shut-off.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Certificate of conformity	Download
Certificate of conformity	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
Shaft/stem matérial	Stainless steel 316
DN	DN15 - 1/2''
Face to Face (mm)	75.0
Body material	Stainless steel CF8M (1.4408)
PS (bar)	63
Connections	BSP FF
Seats	PTFE-Stainless steel
TS max (°C)	220
TS min (°C)	-40
ATEX zone	1.21.2.22
Warranty period	1 year
CE	Risk category III

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
8302	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF	272702	S1008346	€58.99 (excl. btw)	add to cart
8303	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF	272703	S1008347	€75.57 (excl. btw)	add to cart
8304	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF	272704	S1008348	€100.06 (excl. btw)	add to cart
8305	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 BSP FF	272705	S1008349	€132.26 (excl. btw)	add to cart
8306	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF	272706	S1008350	€201.11 (excl. btw)	add to cart
8307	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF	272707	S1008351	€275.40 (excl. btw)	add to cart
8308	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding BW	272732	S1008352	€58.99 (excl. btw)	add to cart
8309	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding BW	272733	S1008353	€75.57 (excl. btw)	add to cart
8310	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding BW	272734	S1008354	€100.06 (excl. btw)	add to cart
8311	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 Welding BW	272735	S1008355	€132.26 (excl. btw)	add to cart
8312	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding BW	272736	S1008356	€201.11 (excl. btw)	add to cart
8313	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding BW	272737	S1008357	€275.40 (excl. btw)	add to cart
8314	BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding SW	272752	S1008358	€58.99 (excl. btw)	add to cart
8315	BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding SW	272753	S1008359	€75.57 (excl. btw)	add to cart
8316	BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding SW	272754	S1008360	€100.06 (excl. btw)	add to cart
8317	BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 Welding SW	272755	S1008361	€132.26 (excl. btw)	add to cart
8318	BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding SW	272756	S1008362	€201.11 (excl. btw)	add to cart
8319	BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding SW	272757	S1008363	€275.40 (excl. btw)	add to cart
