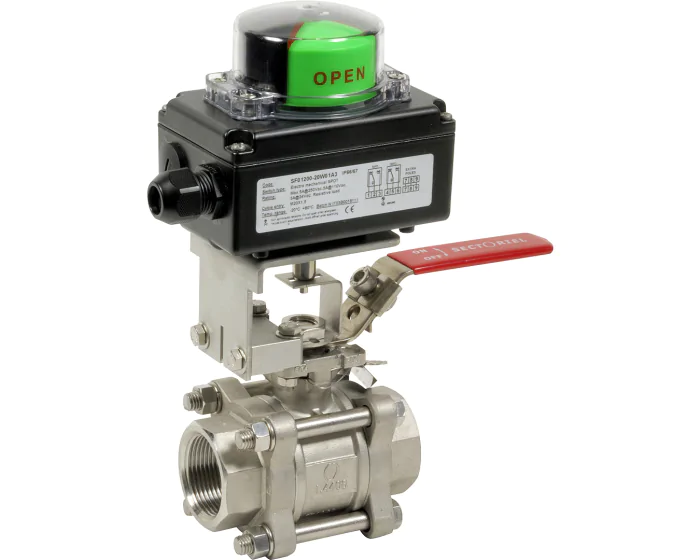

Stainless steel body and ball 1.4408, PTFE/glass seats, full bore. PS: 63 bar- TS: -30/+180°C. G threaded fittings. Limit switch box SF012, 2 dry contacts SPDT.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 65.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 3-piece body BSP FF DN8 - 1/4'' | 2725000462012 | S1007950 |
€405.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body BSP FF DN10 - 3/8'' | 2725010462012 | S1007951 |
€405.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN15 - 1/2'' BSP FF | 2726420462012 | S1007952 |
€406.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN20 - 3/4'' BSP FF | 2726430462012 | S1007953 |
€413.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN25 - 1'' BSP FF | 2726440462012 | S1007954 |
€452.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN32 - 1''1/4 BSP FF | 2726450462012 | S1007955 |
€484.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN40 - 1''1/2 BSP FF | 2726460462012 | S1007956 |
€512.04
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN50 - 2'' BSP FF | 2726470462012 | S1007957 |
€570.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN65 - 2''1/2 BSP FF | 2726480462012 | S1007958 |
€868.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN80 - 3'' BSP FF | 2726490462012 | S1007959 |
€1,049.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN100 - 4'' BSP FF | 2726500462012 | S1007960 |
€1,351.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN25 - 1'' Welding BW | 2726640462012 | S1007961 |
€452.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN32 - 1''1/4 Welding BW | 2726650462012 | S1007962 |
€484.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN65 - 2''1/2 Welding BW | 2726680462012 | S1007963 |
€868.39
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN80 - 3'' Welding BW | 2726690462012 | S1007964 |
€1,049.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN15 - 1/2'' Welding SW | 2726820462012 | S1007965 |
€406.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3-piece body DN20 - 3/4'' Welding SW | 2726830462012 | S1007966 |
€413.10
(excl. btw)
|
add to cart |
