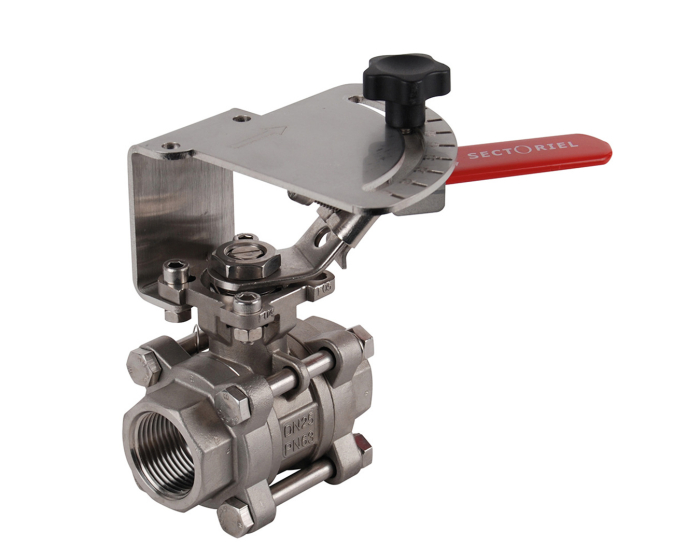

Stainless steel ball valve 746XS 3 piece body BSP V-port 30 1/2"
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 316 |
| ATEX compatible | Yes |
| Flow rate coefficient CV (gpm) | 11.8 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Kv (m³/h) | 5.1 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| TS min (°C) | -40 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 5.1 | 272642V3 | S1007761 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' BSP FF 10.1 | 272642V6 | S1007762 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 6.8 | 272643V3 | S1007763 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' BSP FF 14.5 | 272643V6 | S1007764 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 13.7 | 272644V3 | S1007765 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' BSP FF 24.5 | 272644V6 | S1007766 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 25.3 | 272646V3 | S1007767 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 BSP FF 47.9 | 272646V6 | S1007768 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 38.4 | 272647V3 | S1007769 |
€497.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' BSP FF 81.4 | 272647V6 | S1007770 |
€497.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding BW 5.1 | 272662V3 | S1007771 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding BW 10.1 | 272662V6 | S1007772 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding BW 6.8 | 272663V3 | S1007773 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding BW 14.5 | 272663V6 | S1007774 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding BW 13.7 | 272664V3 | S1007775 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding BW 24.5 | 272664V6 | S1007776 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding BW 25.3 | 272666V3 | S1007777 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding BW 47.9 | 272666V6 | S1007778 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding BW 38.4 | 272667V3 | S1007779 |
€497.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding BW 81.4 | 272667V6 | S1007780 |
€497.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding SW 5.1 | 272682V3 | S1007781 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' Welding SW 10.1 | 272682V6 | S1007782 |
€221.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding SW 6.8 | 272683V3 | S1007783 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' Welding SW 14.5 | 272683V6 | S1007784 |
€232.57
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding SW 13.7 | 272684V3 | S1007785 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' Welding SW 24.5 | 272684V6 | S1007786 |
€286.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding SW 25.3 | 272686V3 | S1007787 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 Welding SW 47.9 | 272686V6 | S1007788 |
€392.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding SW 38.4 | 272687V3 | S1007789 |
€497.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' Welding SW 81.4 | 272687V6 | S1007790 |
€497.59
(excl. btw)
|
add to cart |
